QIACHIP 433Mhz Universal Wireless Remote Control Switch AC 85V ~ 250V 110V 220V 1 Channel Relay Receiver Module and RF 433 Mhz Remote Controls KR2201-4/KT05

QIACHIP 433Mhz Universal Wireless Remote Control Switch AC 85V ~ 250V 110V 220V 1 Channel Relay Receiver Module and RF 433 Mhz Remote Controls KR2201-4/KT05

Regular price ₹ 639.00
Regular price ₹ 650.00 Sale price ₹ 639.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It's a QIACHIP 433Mhz Universal Wireless Remote Control Switch AC 85V ~ 250V 110V 220V 1 Channel Relay Receiver Module and RF 433 Mhz Remote Controls KR2201-4/KT05. Specification Input Power:...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3973
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: RF Modules
View full product details

Description

It's a QIACHIP 433Mhz Universal Wireless Remote Control Switch AC 85V ~ 250V 110V 220V 1 Channel Relay Receiver Module and RF 433 Mhz Remote Controls KR2201-4/KT05.

Specification

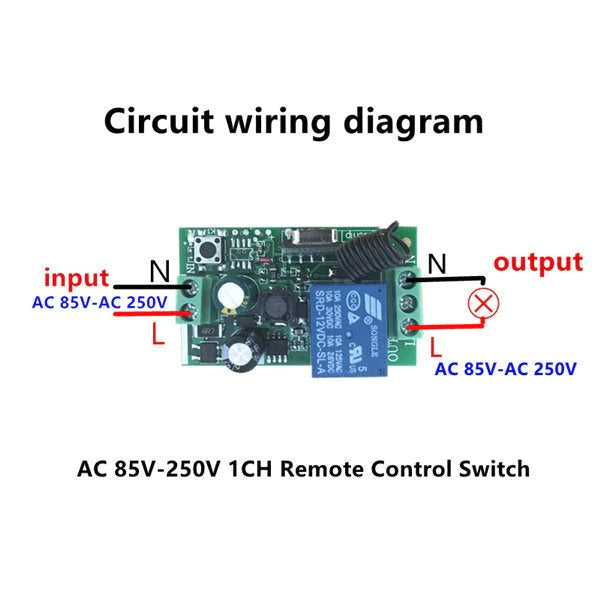

  • Input Power: AC 85V - 250V
  • Standby Current: <5MA
  • RF Frequency: 433Mhz
  • RF working mode: superheterodyne
  • Receive sensitivity: >97dbm
  • Transmitting distance: 20 meters or more
  • Remote storage: 20pcs
  • Support remote type: Learning code 1527Code
  • Working mode: Momentary, Toggle, Latching
  • Dimension of PCB: 53.8*31.2mm



About Working mode:

Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle: Push once the remote button, the relay connects , push twice the remote button , the relay dis-connects Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.



How to use the demo video:

https://youtu.be/xLTEAOBa5gY



The demo version of the video is an old version of the receiver,

the receiver of the new version of the button with its different position,

but they are used in the same way.



Clearing the code :

Push the learning button on the receivers 8 times , the codes will be cleared.

After clearing the code, all the remote controls need to be re-paired in order to control the receiver again.

Learning the code: (momentary)

Press the learning key once, the LED on the Receiver will flash once. When the LED switch on, press any button on the remote control, the LED on the Receiver will flash 3 times and switches off, indicates that they are successfully paired.

Learning the code: (Toggle)

Press the learning key twice, the LED on the receiver will flash twice. When the LED switch on, press any button on the remote control, the LED on the Receiver will flash 3 times and switches off, indicates that they are successfully paired.

Learning the code: (Latching)

Note: For latching mode, you need to learn with two different buttons, the first one for "ON", the second one for "OFF".

For example: button A = ON, button B = OFF



Push the learning key on the receiver 3 times, initiate latching mode setting.

Wait for a moment , the LED indicator on the receiver will flash briefly and switches off.

Push the remote button A.

LED flashes 5 times.

Push the remote button B.

Led flashes 5 times .

3 seconds later, the LED indicator will switch on again , indicates remote and receiver are successfully paired.
