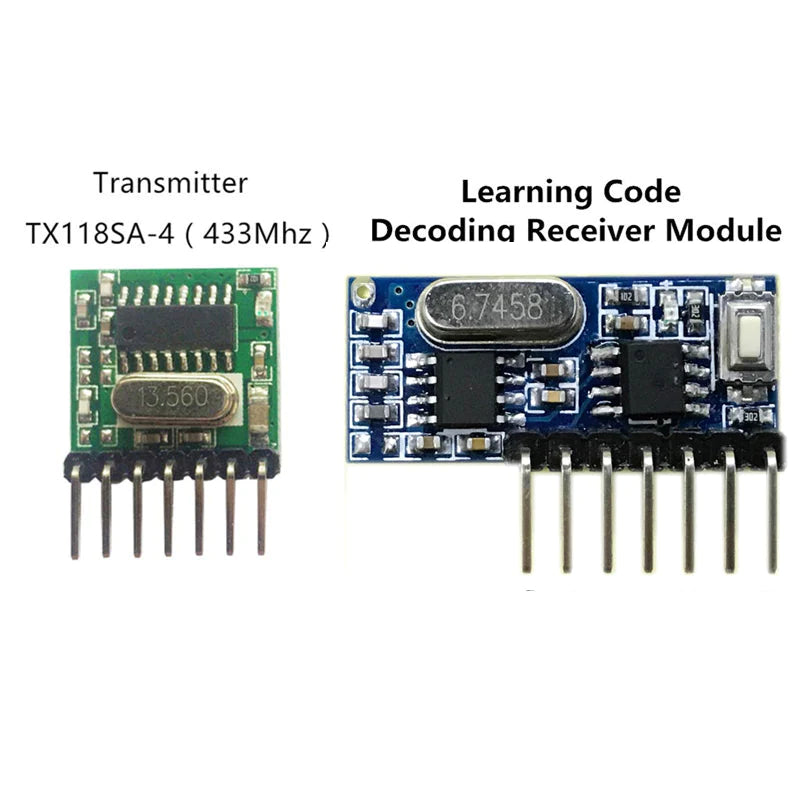

Qiahip 433mhz Wireless Wide Voltage Coding Transmitter Decoding Receiver 4 Channel Output Module For 433 Mhz Remote Controls

Qiahip 433mhz Wireless Wide Voltage Coding Transmitter Decoding Receiver 4 Channel Output Module For 433 Mhz Remote Controls

₹ 335.00
₹ 350.00 ₹ 335.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It's a Qiahip 433mhz Wireless Wide Voltage Coding Transmitter Decoding Receiver 4 Channel Output Module For 433Mhz Remote Controls Specification   Model: TX118SA-4 Transmitting power: 11dbm Distance: 200M Emission current: 10MA...
26 people are viewing this right now

Availability: In stock

SKU: ATC-3976
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: RF Modules
View full product details

Description

It's a Qiahip 433mhz Wireless Wide Voltage Coding Transmitter Decoding Receiver 4 Channel Output Module For 433Mhz Remote Controls

Specification

  •  Model: TX118SA-4
  • Transmitting power: 11dbm
  • Distance: 200M
  • Emission current: 10MA
  • Standby current: less than 3UA
  • Rate of fire: maximum 10KB / S
  •  Transmit deviation: +/- 7. 5KHZ / narrow-band emission
  • Modulation: ASK
  • Operating Voltage: DC 3V-24V
  • Encoding : EV1527 1527 Learning code
  • Customizable special code: MCU type.Optional fixed encoding type: PT2262 / EV1527 / HT6P20B (Minimum order:500pcs)
  • Key data: A, B, C, D groups of 4 inputs can be combined into 15 groups.Standby current: <3UA
  • Each module has a unique ID address code.
  • All modules K1-K4 four key code is the same.

Pins Instruction

- : Negative power supply

+: Positive power supply, DC 3-24V

K1: External input keys, short to ground start transmitting data to 1, the A button on the remote control.

K2: External input keys, short to ground 2 start transmitting data, the equivalent of the remote control B button.

K3: External input keys, short to ground start transmitting data 3, the equivalent of the C key on the remote control.

K4: External input keys, short to ground 4 start transmitting data, the equivalent of the remote control D keys.

ANT: transmitting antenna
