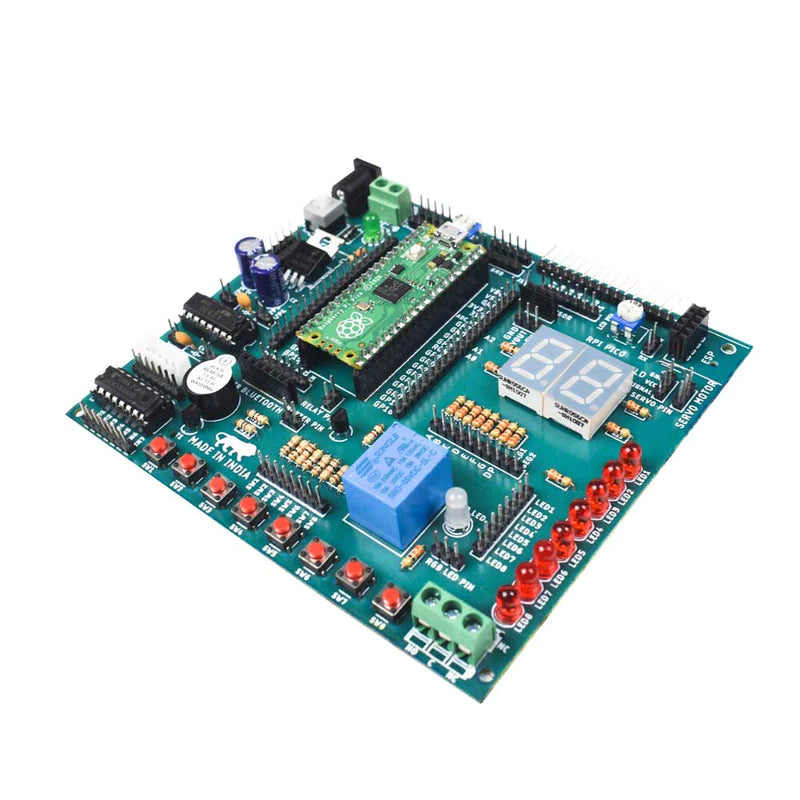

Raspberry Pi Pico Development Board Shield

Raspberry Pi Pico Development Board Shield

Description   This is a Raspberry Pi Pico Development Board Shield with Raspberry Pi Pico Board. The Raspberry Pi Pico is the first microcontroller board of the Raspberry Pi series, which...
22 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3437
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

  This is a Raspberry Pi Pico Development Board Shield with Raspberry Pi Pico Board. The Raspberry Pi Pico is the first microcontroller board of the Raspberry Pi series, which was created specifically for physical computing. The Raspberry Pi Pico is powered by the RP2040, which has a dual-core Arm Cortex-M0+ processor, 264KB of internal RAM, and up to 16MB of off-chip Flash. It's a small, quick, and adaptable board with a variety of configurable I/O options like I2C and SPI. It does not include header pins, which must be purchased individually. Using the C/C++ SDK or the official Micro Python port, we can easily reprogram it over USB from a Raspberry Pi or other computer. This board's construction includes a relay, 2-seven-segment displays, a buzzer, an L293D motor driver, ULN2003 IC, a Bluetooth insert port, RGB, an 8-input switch, with output indication etc.

Features

  • All Pins are Breakout Pins are available at Female bugs Connector which can be used as the main board for developing applications
  • Direct Plug & Play of the PICO board & run your code.
SPECIFICATIONS
Product Raspberry Pi Pico Development Board Shield
Raspberry Input Power 1.8V - 5.5V DC
Microcontroller  Raspberry Pi RP2040
Processor Dual-core Arm Cortex-M0+ processor
Input Voltage +12V
Make Make in India
Board Dimension (mm) 130x115mm
