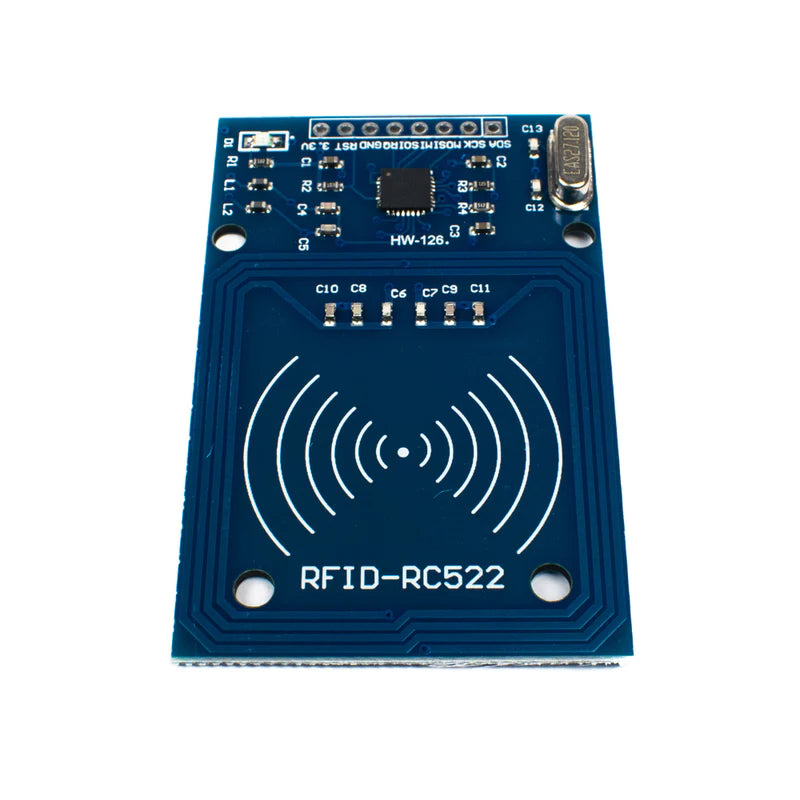

RC522 RFID Module with Tag and card

RC522 RFID Module with Tag and card

Regular price ₹ 83.90
Regular price ₹ 105.00 Sale price ₹ 83.90
Sold Out
Tax included. Shipping calculated at checkout.
Description RFID Reader / Writer 13.56MHz with Cards RC522 A 13.56MHz RF reader cum writer module with an RC522 IC and two S50 RFID cards are included in the kit....
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3999
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

RFID Reader / Writer 13.56MHz with Cards RC522 A 13.56MHz RF reader cum writer module with an RC522 IC and two S50 RFID cards are included in the kit. The MF RC522 is a highly integrated transmission module operating at 13.56 MHz for contactless communication. The ISO 14443A/MIFARE mode is supported by the RC522. The RC522 - RFID Reader has an excellent modulation and demodulation algorithm for easy RF connection at 13.56 MHz. The S50 RFID Cards will make it easier for you to study and incorporate the 13.56 MHz RF transition into your project. To connect with microcontrollers, the module use SPI. There are already many projects in the open-hardware community that use the RC522 - RFID Communication with the Arduino.

Package contents

  • 1x Mifare RC522 Card Read Antenna RF Module.
  • 1x RFID plain white Card
  • 1x RFID FOB
  • 1x 8pin right-angle header pins
  • 1x 8pin straight header pin.
SPECIFICATIONS
Idle Current 10-13mA
Peak Current  <30mA
Input Voltage 3.3 volts
Operating Frequency 13.56 MHz
Relative Humidity 5 % -95 %
Read Range Approx 3cm with supplied card and fob
Max Data Transfer Rate 10Mbit / s
Dimensions 60mm × 39mm
Interface Type SPI
Supported Card Types Mifare1 S50, mifare1 S70, Mifare ultralight, Mifare Pro
