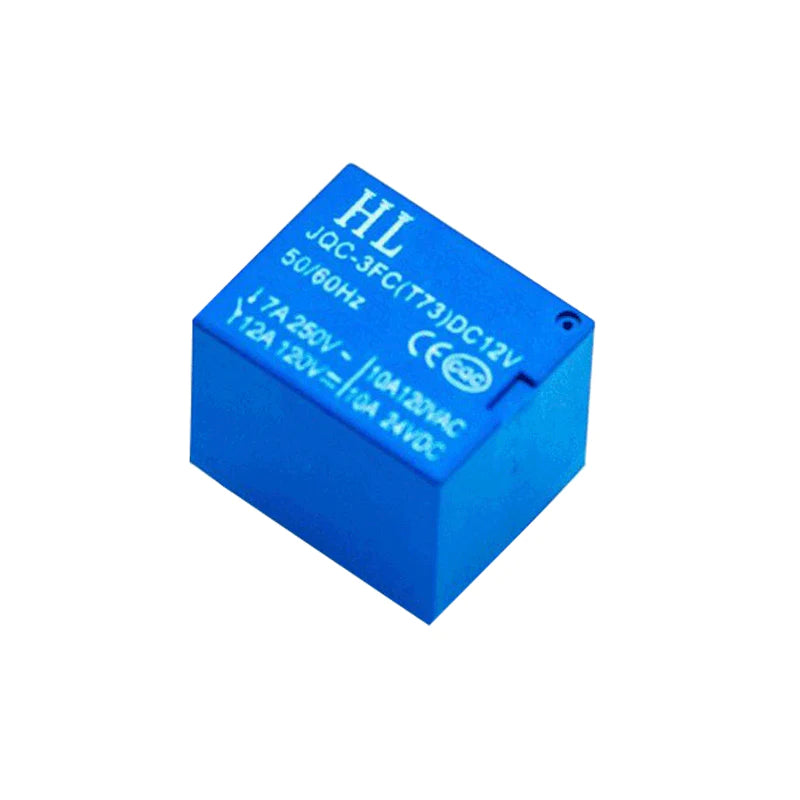

SPDT(Single Pole Double Throw) relay is used as a switch for high current AC/DC appliances which need to be controlled from a microcontroller or sensor output. 12V PCB Mount Sugar Cube SPDT Relay instead of its small size can switch a load of 7A connected to it. The coil resistance of this relay is 270 ohm whereas the coil current is 44.4 mA. The trigger voltage for this relay is 12V. There are 5 pins in this relay i.e, Coil end 1, Coil end 2, COM(common), NC and NO. Coil end 1 and Coil end 2 are used to trigger ON/OFF the relay. One end is connected to a 12V supply and the other is connected to the ground of the circuit. Common is connected to the one end of the load to be controlled. The other end of the load is connected to either NC or NO. If the load is connected to NC(Normally Closed) then the load remains ON before trigger. And if it is connected to NO(Normally Open) then the load remains OFF before trigger. These relays are usually used in home automation, switching circuits, security circuits, etc.
| Maximum AC load current | 7A @ 250/125V AC |
| Maximum DC load current | 10A @ 30/28V DC |
| Trigger Voltage (Voltage across coil) | 12V DC |
| Trigger Current (Nominal current) | 45mA |
| Operating time | 10msec |
| Release time | 5msec |
