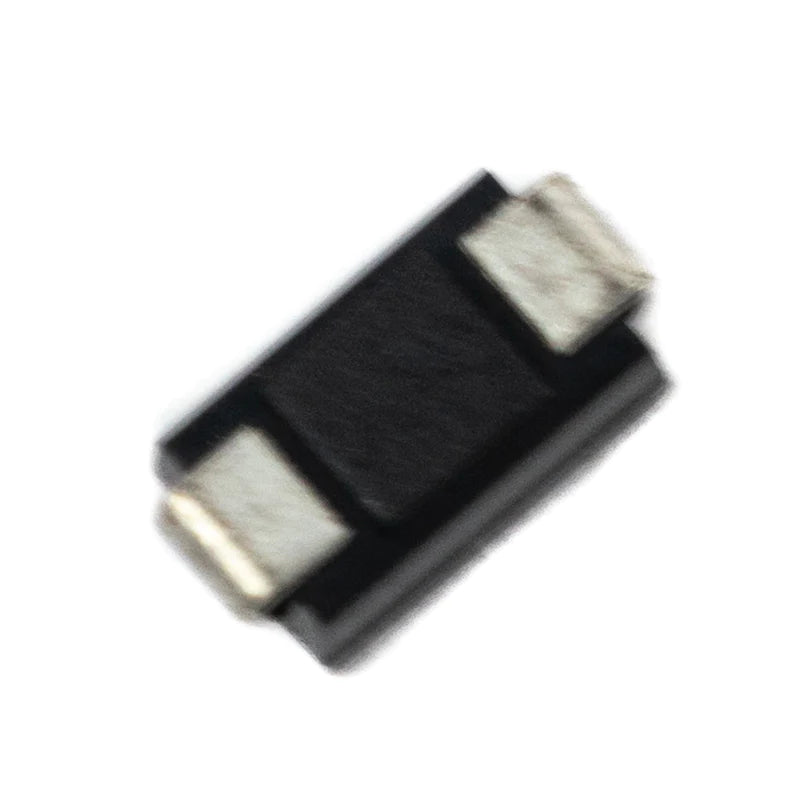

The RS1M is an SMA (DO-214AC) surface mount fast rectifier diode. For maximum efficiency, this device has a glass passivated junction, low profile packaging, and a quick recovery time.
Features
| Model | RS1M |
| Package | SMA DO-214AC |
| Mounting | Surface Mount |
| Max. Repetitive Reverse Voltage | 1000V |
| Average Rectified Current | 1A |
| Forward Voltage | 1.3V |
| Reverse Current | 5µA |
| Reverse Recovery Time | 500ns |
| Max. Forward surge Current | 30A |
| Operating Junction Temperature | -55°C to 150°C |
| Power Dissipation | 1.19W |
| Quantity | 2000 |
