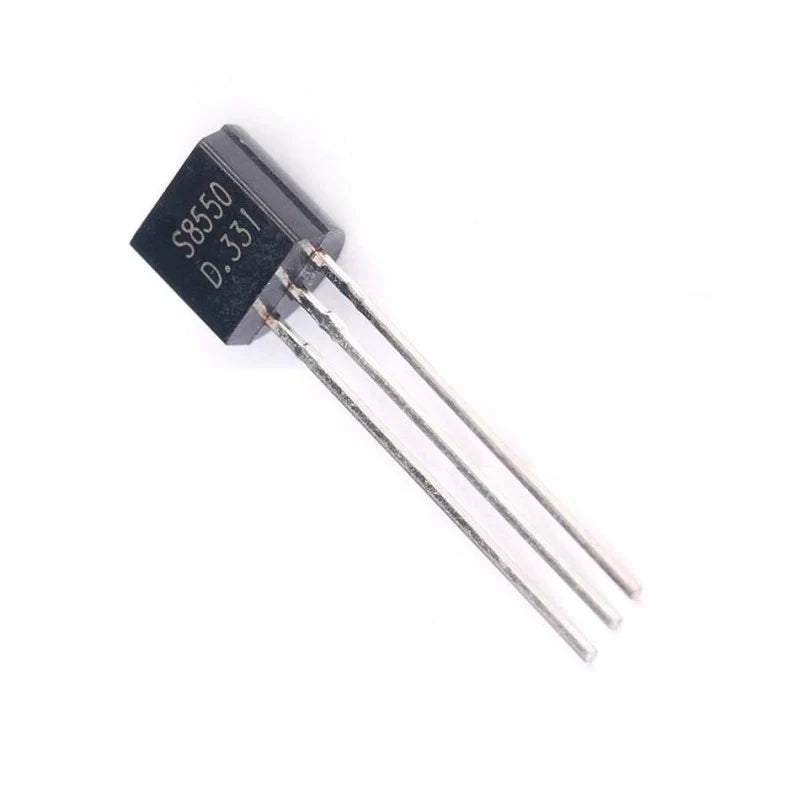

S8550 PNP Transistor TO-92

S8550 PNP Transistor TO-92

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description S8550 is a low voltage and high current transistor. It is a general-purpose PNP transistor designed for audio amplification and class B push-pull application. The collector current Ic is a...
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3540
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

S8550 is a low voltage and high current transistor. It is a general-purpose PNP transistor designed for audio amplification and class B push-pull application. The collector current Ic is a function of the base current Ib for a given collector-emitter voltage VCE, and a change in the base current gives a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.

Features:

  • Its used in Switching application
  • Its Collector-Emitter Voltage (VCEO) -20V
  • Its max power 2W
SPECIFICATION
Part Number S8550
Transistor Polarity PNP
Collector-Emitter Voltage (VCEO) -20V
Collector-Base Voltage (VCBO) -30V
Continuous Collector-Current (Ic) -700mA
Emitter-Base Voltage (VEBO) -5V
Operating Temperature Range -65°C to 150°C
DC Current Gain (hFE) 120-400
Current Gain Bandwidth 100MHz
Maximum Power 2 Watt
Output Capacitance 9pF
