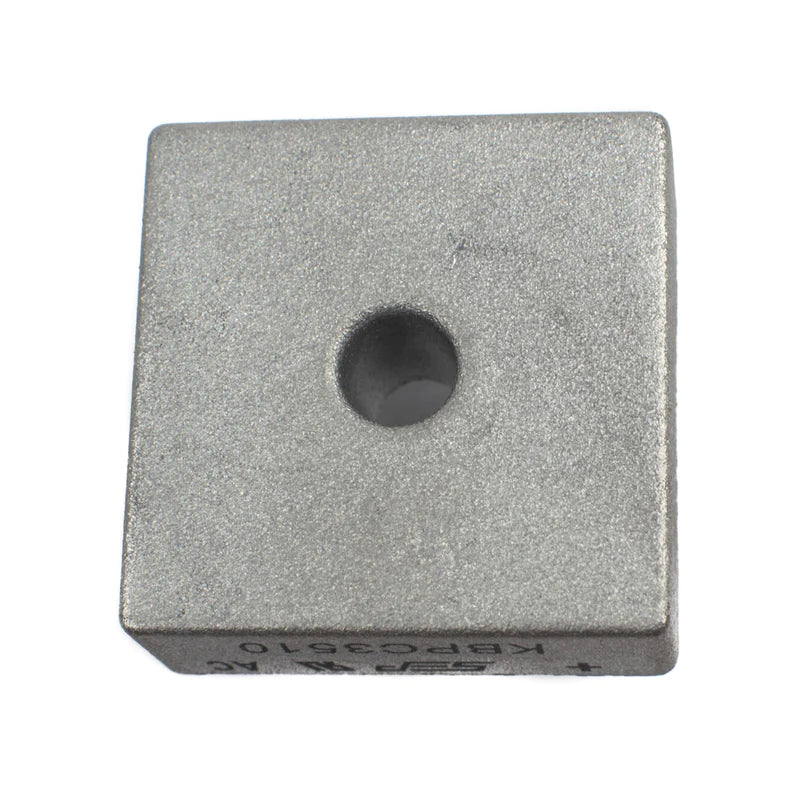

SEP KBPC3510 Bridge Rectifier Metal Case Diode

SEP KBPC3510 Bridge Rectifier Metal Case Diode

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Features  Surge overload -240~500 Amperes...
18 people are viewing this right now

Availability: In stock

SKU: ATC-3744
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.

Features

  •  Surge overload -240~500 Amperes peak
  •  Low forward voltage drop
  •  Electrically isolated base -2000 Volts
  •  Solderable 0.25" FAST ON terminals
  •  Materials used carries UL recognition

Mechanical Data

  • Mounting Position : Any
  • Reverse Voltage : 50 to 1000 Volts
  • Forward Current : 10/15/25/35/50 Ampere

Datasheet

SPECIFICATIONS
Product Series KBPC3510
Brand SEP
Package DIP
Repetitive Peak Reverse Voltage 1000V
Average Rectified Output Current 50A
Surge(Non repetitive)Forward Current 500A
Storage Temperature -55 - +150
Junction Temperature
-55 - +125
Dielectric Strength 2.5kV
Mounting Torque 20
Max Peak Forward Voltage 1.1
Max Peak Reverse Current 10
Max Thermal Resistance 0.7
