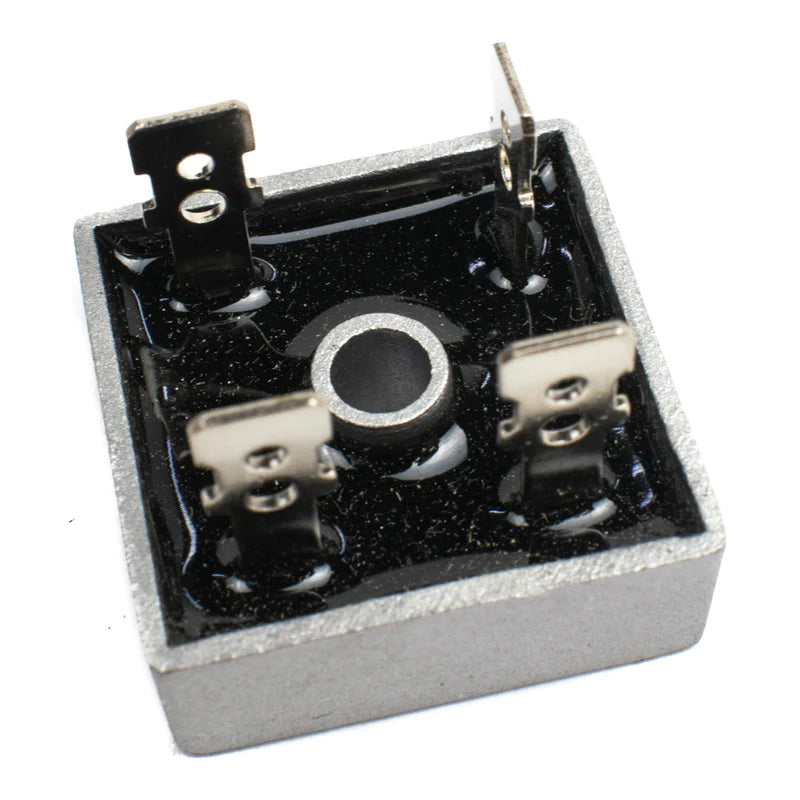

The KBPC5010 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage is 700V; hence can be used for a broad range of applications. The maximum Direct Current that this IC can handle is 50A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a high surge current capability of 500A. If you are looking for a compact IC for rectification applications, this can be a good choice.
Features
| Product Series | KBPC5010 |
| Brand | SEP |
| Package | DIP |
| Repetitive Peak Reverse Voltage | 1000V |
| Average Rectified Output Current | 50A |
| Surge(Non-repetitive)Forward Current | 400A |
| Junction Temperature | -55°C ~+125°C |
| Dielectric Strength | 2.5kV |
| Max Peak Forward Voltage | 1.0 |
| Max Peak Reverse Current | 500µA |
| Max Thermal Resistance | 2.5°C/W |
