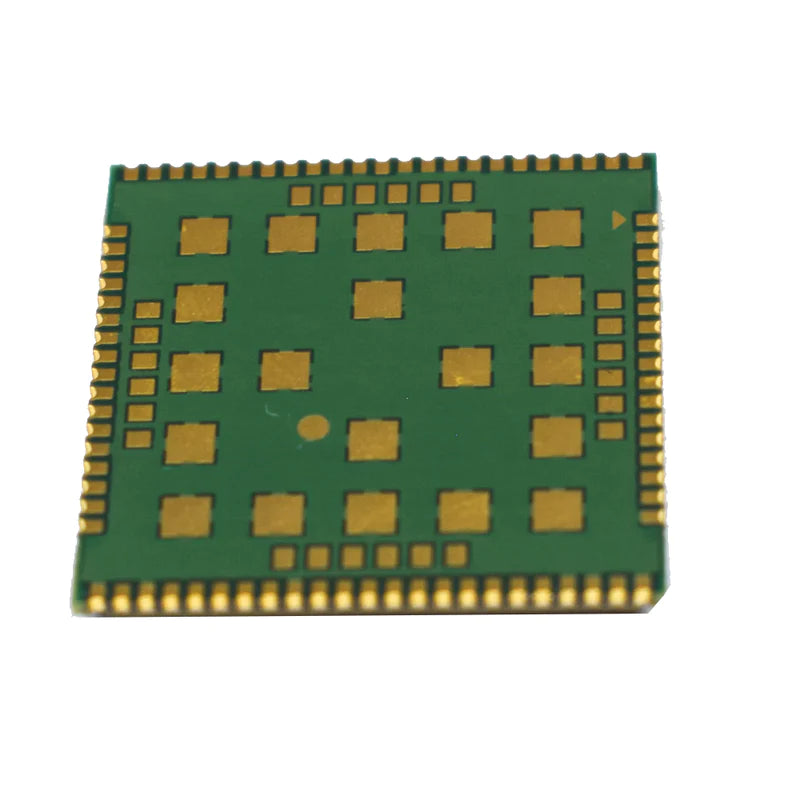

SIM A7670C Chip Module

SIM A7670C Chip Module

Description The A7670 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/m GSM/GPRS/EDGE data transfer rates of up to 10Mbps. It has a strong extension capability...
20 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2774
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Communication Module
View full product details

Description

The A7670 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/m GSM/GPRS/EDGE data transfer rates of up to 10Mbps. It has a strong extension capability and a variety of interfaces, such as UART, USB 2.0, GPIO, and so on. The module offers a high level of flexibility and ease of integration for the customer's application. The A7670X comes in an LGA package. It is intended for use in applications that require high-throughput data communication in a variety of radio propagation conditions.

Features

  • Small Size LTE Module.
  • LGA package with rich interfaces.
  • Suitable for LTE and GSM networks.
SPECIFICATION
 Model A7670C Chip
 Brand SIMCOM
 Type LTE Module
 Frequency Band

LTE-FDD B1/B3/B5/B8
LTE-TDD B34/B38/B39/B40/B41
GSM 900/1800MHz

 Supply voltage range  3.4 V ~ 4.2 V
 Package SMD Package
 Dimensions 24 x 24 x 2.5mm
 Material
Silicon
 Operation temperature -40℃ ~85℃
