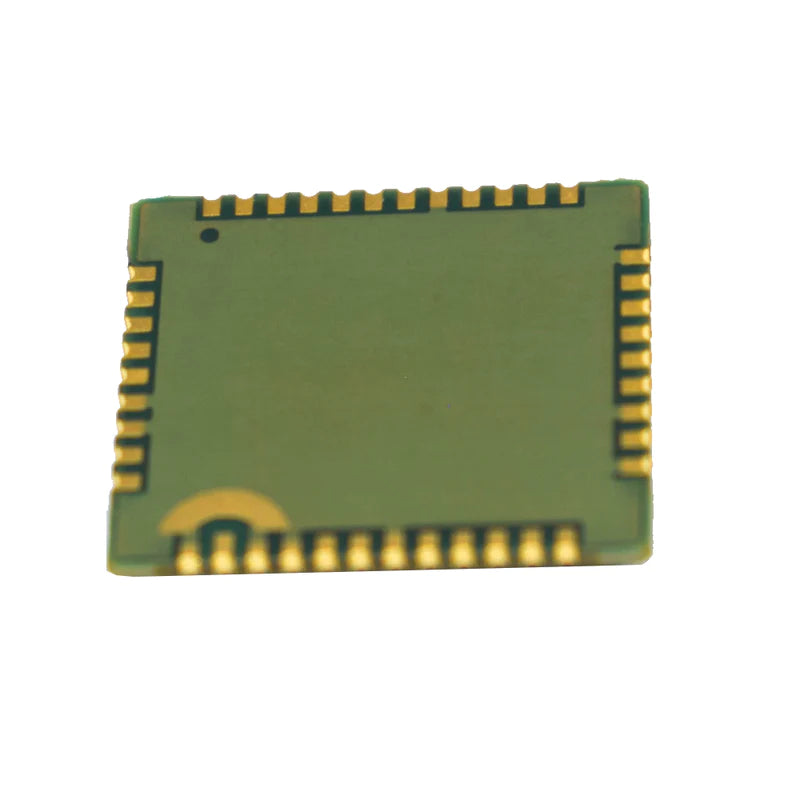

SIM800C GSM GPRS Chip Module

SIM800C GSM GPRS Chip Module

Description SIM800C GSM GPRS Chip Module. It can transmit voice, SMS, and data over GSM. The SIM800C GSM/GPRS Module from SIMCOM is a popular module for adding GSM/GPRS/Bluetooth support to...
28 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2773
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Communication Module
View full product details

Description

SIM800C GSM GPRS Chip Module. It can transmit voice, SMS, and data over GSM. The SIM800C GSM/GPRS Module from SIMCOM is a popular module for adding GSM/GPRS/Bluetooth support to any electronic device. The module is very inexpensive and requires very few external components. It has applications in a variety of fields, including IoT, data monitoring, remote control, factory automation, and so on. SIM800C is a Quad Band GSM Module with 42 pins in an SMT Package. The module is also very small, measuring only 17.6 x 15.7 x 2.4mm. This module can transmit voice, SMS, and data, as well as use Bluetooth for data transmission, all while consuming very little power. As a result, it is an appropriate choice when the final device has a small footprint and a compact design.

Features

  • Quad Band GSM / GPRS Module
  • Can transmit voice, SMS, and data over GSM
  • Low Power Consumption
  • Embedded TCP/UDP protocols
  • LCC form factor, easy for solder
  • Abundant software functions: DTMF, MMS, MUX
SPECIFICATION
 Model SIM800C
 Brand SIMCOM
 Frequency Band Quad-band 850/900/1800/1900MHz
 Supply voltage range  3.4 ~ 4.4V
 No. of Pins 42
 Package SMD Package
 Dimensions 17.6 x 15.7 x 2.4mm
 Support Bluetooth 3.0 EDR
 Operation temperature -40℃ ~85℃
