SIM900A Simcom GSM/GPRS Module (Make in india)

SIM900A Simcom GSM/GPRS Module (Make in india)

Description The SIM900A Simcom GSM/GPRS Module with USB (UART) Interface. The SIM900A supports quad-band 850/900/1800/1900 MHz and can transmit voice, SMS, and data information while consuming little power. Using USB...
15 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2777
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

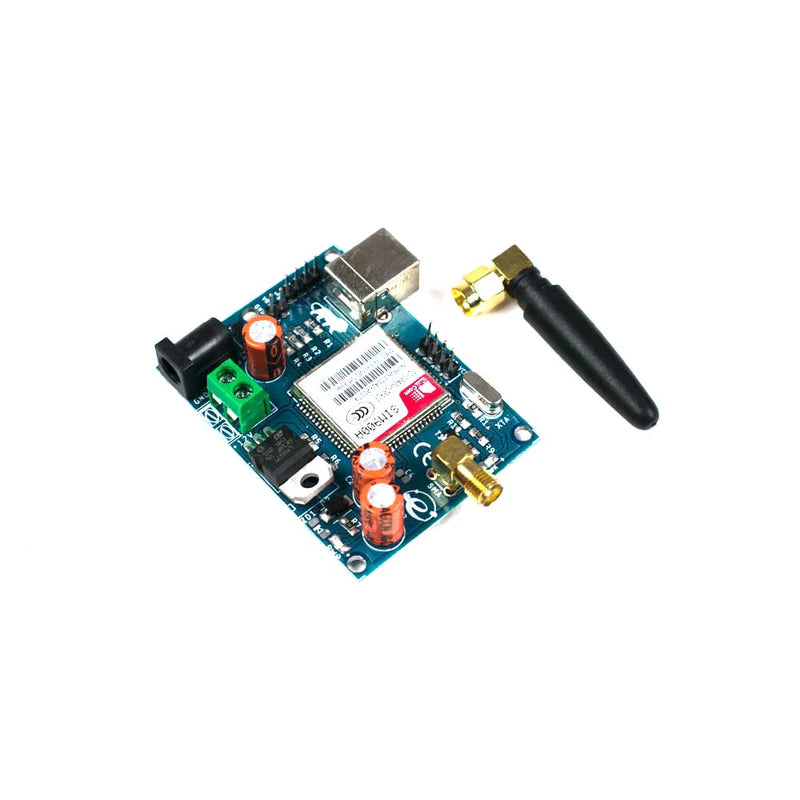

The SIM900A Simcom GSM/GPRS Module with USB (UART) Interface. The SIM900A supports quad-band 850/900/1800/1900 MHz and can transmit voice, SMS, and data information while consuming little power. Using USB to Serial connector and SMA antenna connector are included. The LM317 voltage regulator on board can provide regulated 5V at up to 1A voltage to the board and connecting circuit. An additional Berg strip is provided for GND, +5V, and +9V external connections. It has also the feature of speaker & mic connectivity using berg terminals. It has one silent & important feature that supports the DTMF feature on call.

The GSM800A can communicate with any microcontroller, such as the Raspberry Pi, 8051, PIC, ARM, and AVR.

Feature:

  • Quad-band 850/900/1800/1900MHz.
  • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT command set).
  • High-Quality Product.
  • Configurable baud rate.
  • Built-in SIM Card Holder.
  • Built-in Network Status LED.
  • Low power.

Applications:

  • Parking Meter and Taxi Meter
  • For Detection of Navigation
SPECIFICATION
Model SIM900A Simcon GSM/GPRS Module
Input Voltage 12V DC
Working Temperature -40°-90°C
Serial Port Interface USB (UART)
Included  Finger Antenna
Size (LxBxH) 65mm*49mm*14mm
Origin  Make in India
