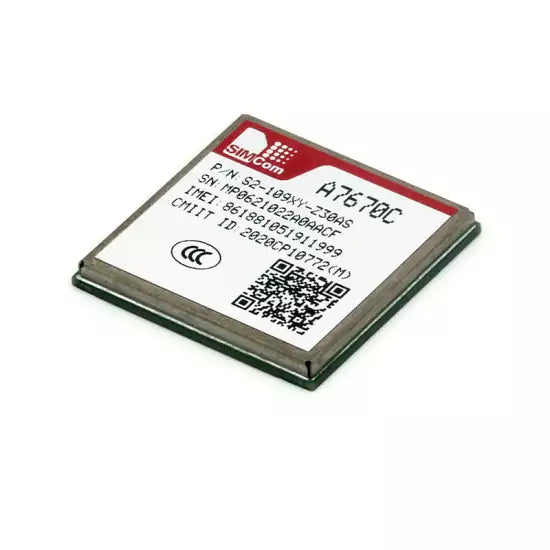

SIMCOM A7670C-LASS LTE 4G Module

SIMCOM A7670C-LASS LTE 4G Module

Description SIMCOM A7670C-LASS LTE 4G Module is The Cat-1 Module which supports wireless communication modes of LTE-TDD/LTE-FDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. A7670 provides 124...
24 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-4665
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: GSM & GRPS Module
View full product details

Description

SIMCOM A7670C-LASS LTE 4G Module is The Cat-1 Module which supports wireless communication modes of LTE-TDD/LTE-FDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. A7670 provides 124 pins, including 80 LGA pins in the outer ring and 44 LGA pins in the inner ring.

The SIMCOM A7670C series adopts LGA form factor and is compatible with SIM7000/SIM7070 series(NB/Cat M modules), and SIM800A/SIM800F(2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.

The SIMCOM A7670C-LASS supports multiple built-in network protocols, supports drivers for main operation systems(USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible withSIM7500/SIM7600 series modules. Meanwhile the A7670series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc.

Feature

  • Small size LTE Cat 1 module
  • LGA form factor with abundant interfaces
  • Suitable for LTE only
  • Abundant software functions: FOTA, LBS, SSL
  • The form factor of A7670 series are compatible with the SIM7000/SIM7070 series
  • Supported Band: LTE-FDD B1/B3/B5/B8 , LTE-TDD B34/B38/B39/B40/B41

*Note: Product Image are shown for illustrative purposes only and may different from the actual product.
