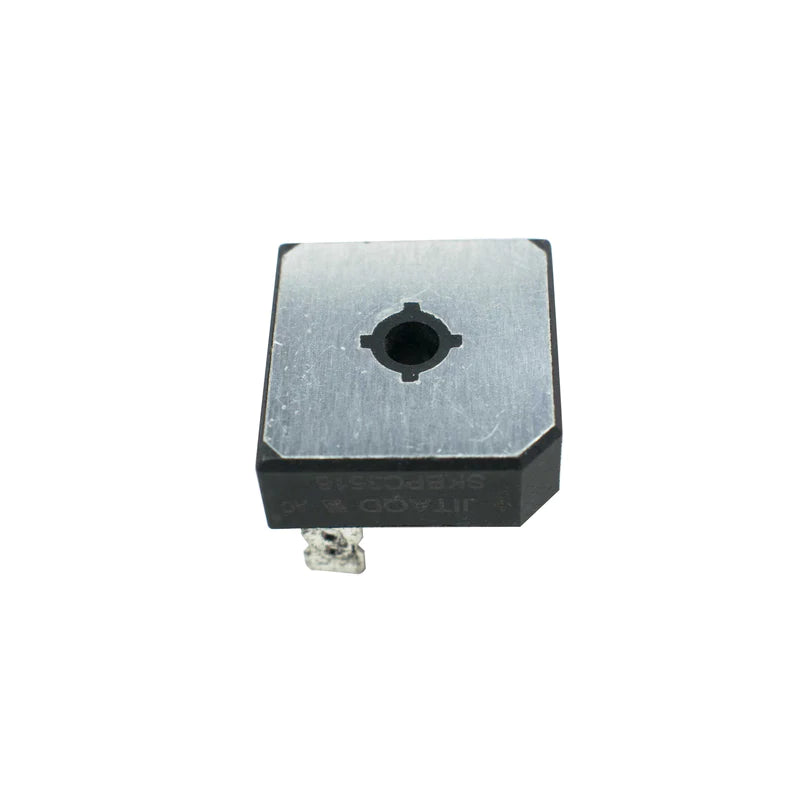

SKBPC3516 1600V 35A Three Phase Bridge Rectifier

SKBPC3516 1600V 35A Three Phase Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description A Three Phase Bridge rectifier diode is the SKBPC3516. Since this IC can tolerate an AC rms voltage of up to 1120V, it can be employed in a wide...
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3722
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

A Three Phase Bridge rectifier diode is the SKBPC3516. Since this IC can tolerate an AC rms voltage of up to 1120V, it can be employed in a wide variety of applications. This IC can tolerate a maximum DC current of 35A. This IC features a low forward voltage loss of 1.2V and a reverse breakdown value of 1600V. It features a high surge current capacity of 400A and great efficiency. This could be an excellent option if you're seeking for a small IC for rectification applications

Features

  • Glass passivated chip
  • High surge forward current capability
  • General purpose 3 phase Bridge rectifier applications
SPECIFICATION
Model SKBPC3516
Type Bridge rectifier diode
Working Peak Reverse Voltage 1600 V
RMS Reverse Voltage V(RMS) 1120 V
Average Forward Rectified Output Current 35A
Peak Reverse Current at 25°C 10µA
Operating and Storage Temperature Range -40°C TO 150°C
