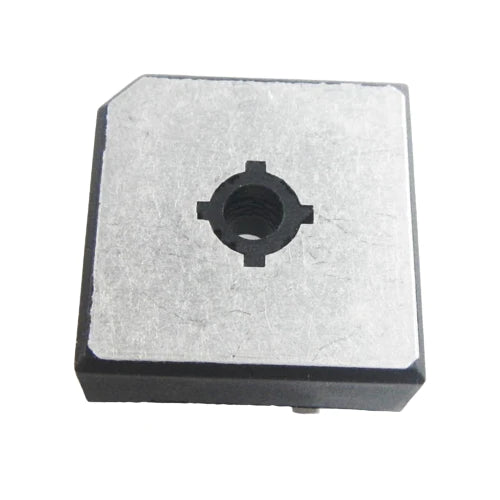

The SKBPC5016 is a Three phase Bridge Rectifier Diode. The maximum AC rms voltage that this IC can withstand is around 1120V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 50A. This IC has a reverse breakdown voltage of 1600V and a low forward voltage drop of 1.2V. It has high efficiency and a high surge current capability of 500A. If you are looking for a compact IC for rectification application this can be a good choice. This bridge rectifier are typically used in large UPS systems, electroplating, electro-refining and anodising plants, large DC motor controllers.
Features
| Model | SKBPC5016 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1600 V |
| RMS Reverse Voltage VR(RMS) | 1120 V |
| Maximum DC Blocking Voltage | 1600V |
| Average Forward Rectified Output Current- | 50A |
| Peak Reverse Current at 25°C | 10µA |
| Operating and Storage Temperature Range | -40°C TO 150°C |
