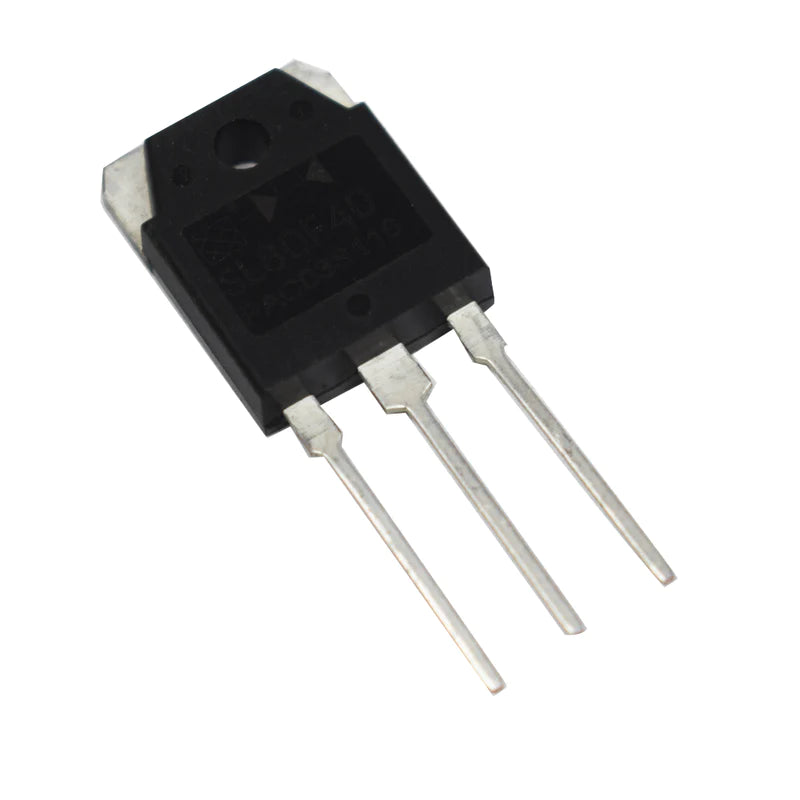

SL80F040 80A 400V Fast Recovery Diode

SL80F040 80A 400V Fast Recovery Diode

₹ 140.00
₹ 160.00 ₹ 140.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The SL80F040 is a Fast Recovery Diode. This soft recovery diode is three pins diode with a TO-3P Package. The Repetitive Reverse Voltage is 400V, and the Continuous Forward Current Per Diode (...
15 people are viewing this right now

Availability: In stock

SKU: ATC-3528
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: General Purpose Transistor
View full product details

Description

The SL80F040 is a Fast Recovery Diode. This soft recovery diode is three pins diode with a TO-3P Package. The Repetitive Reverse Voltage is 400V, and the Continuous Forward Current Per Diode ( TC=100 ℃) is 40A.

Features

  • 400V,80A
  • Soft Recovery
  • Operation Temperature ＜150℃
  • Planar Construction
Applications
  • Freewheeling, Snubber, Clamp
  • Inversion Welder
  • PFC
  • Plating Power Supply
  • Ultrasonic Cleaner and Welder
  • Converter & Chopper
  • UPS
SPECIFICATIONS
Model SL80F40
Maximum D.C. Reverse Voltage 400V
Maximum Repetitive Reverse Voltage 400V
Continuous Forward Current Per Diode ( TC=100 ℃) 40A
Continuous Forward Current Per Package( TC=100 ℃)  80A
Power Dissipation 156W
Type Fast Recovery Diode
Mounting Style Through Hole
Lead Pin 03
Package TO-3P
Operating and Storage Temperature -55 to +175 ℃
