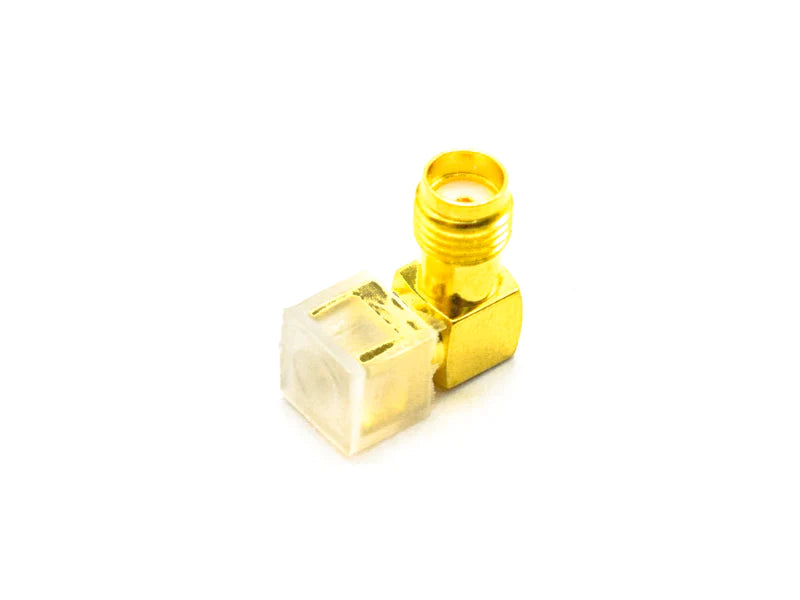

This is a Right Angle SMA Connector Female, which is ideal for prototyping with cellular devices and GPS systems that require an antenna connection. This connector's female signal pin perfectly mates with the original SMA type antenna, ensuring dependable operation. This is a PCB Mount Connector with the antenna mount facing the right angle side. This connector enables the antenna insertion from an enclosure, by putting the entry of the antenna slightly away from the PCB.
| Orientation |
Right Angle |
| Variant |
Female |
| Mounting Type |
PCB Mount |
| Termination Style |
Solder Type |
| Body Material |
Copper |
| VSWR |
≤1.5 |
| Center Contact Resistance |
≤6.0mΩ |
| Outer Contact Resistance |
≤2.0mΩ |
| Body Plating |
Gold Plating |
| Impedance |
50Ω |
