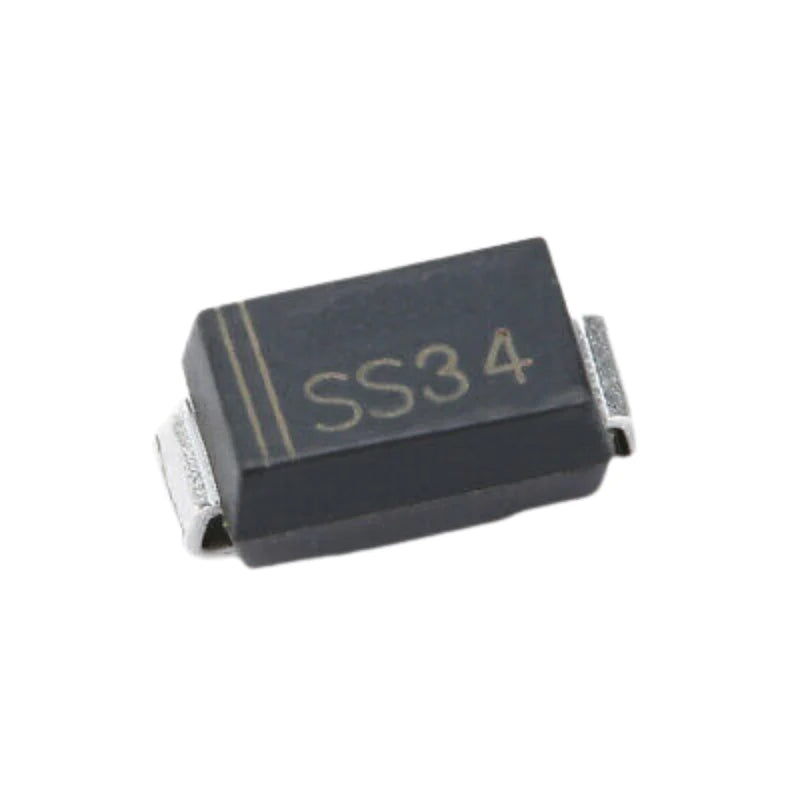

SS34 (1N5822) SMD Schottky Diode (Pack of 50)

SS34 (1N5822) SMD Schottky Diode (Pack of 50)

₹ 450.00
₹ 600.00 ₹ 450.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The SS34 is a surface mount High Power Schottky Diode with a 0.5V voltage drop and a 3A forward current. This diode has high efficiency and a 100A surge...
23 people are viewing this right now

Availability: In stock

SKU: ATC-3471
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: General Diodes General Diodes
View full product details

Description

The SS34 is a surface mount High Power Schottky Diode with a 0.5V voltage drop and a 3A forward current. This diode has high efficiency and a 100A surge current capacity. It is often employed in applications such as freewheeling, DC/DC converters, and reverse polarity protection.

Features

  • Low profile package
  • Built-in strain relief
  • Metal silicon junction, majority carrier conduction
  • Low power loss, high efficiency
  • High current capability, low forward voltage drop
  • High surge capability
  • For use in low voltage high-frequency inverters, freewheeling, and polarity protection applications
  • Guarding for overvoltage protection
  • High-temperature soldering guaranteed:260C/10 seconds, at the terminal



SPECIFICATIONS

Maximum average forward rectified current- If(AV)

3.0 A

Maximum repetitive peak reverse voltage- VRRM

40 V

Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load -Ifsm

100 A

Reverse Current (IR)

0.5mA

Maximum RMS voltage

28V

Package

SMD (DO-214AC)

Operating junction temperature range TJ max

-55°C to +150°C

Circuit configuration

Single
