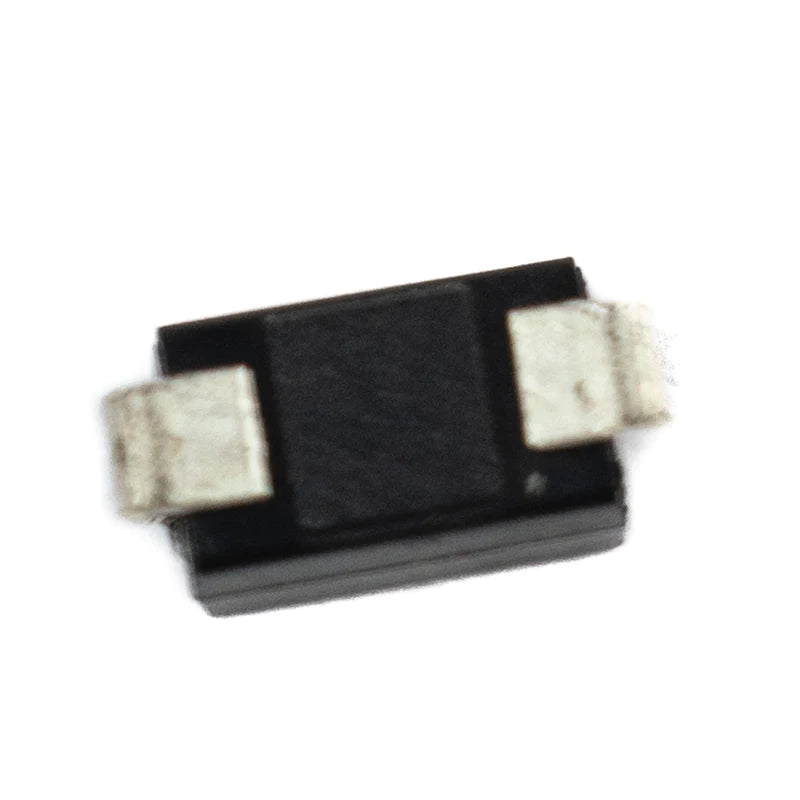

The SS54 Schottky diode in the DO-214AB package makes it perfect for automated placement. SS54 has overvoltage protection, minimal power losses, and high efficiency. SS54 is also known for its low forward voltage drop and good surge capability. These are widely utilised in low voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Features
| Model | SS54 |
| Max. Repetitive Peak Reverse Voltage | 40V |
| Max. RMS Voltage | 28V |
| Maximum Average Forward Rectified Current | 5A |
| Rate of Change of Voltage (dv/dt) | 10000V/µs |
| Operating Junction Temperature | -55°C to 150°C |
| Package | DO-214AB |
