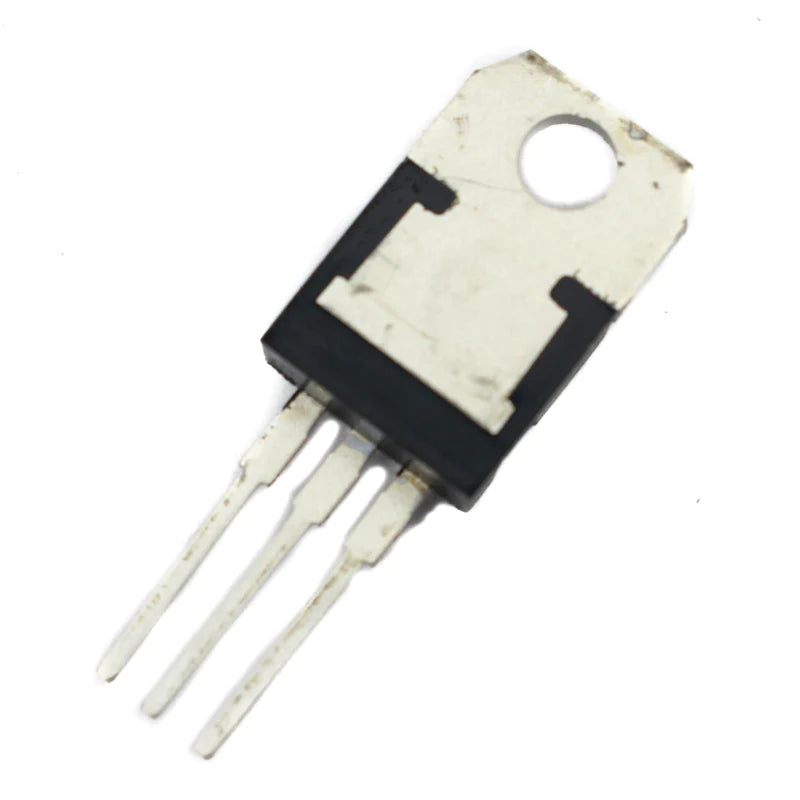

ST MJE3055T 60V 10A NPN Power Transistor TO-220

ST MJE3055T 60V 10A NPN Power Transistor TO-220

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The MJE3055T is a silicon epitaxial-base NPN transistor in Jedec T0-220 package. It is for power switching circuits intended for general-purpose amplifiers. The complementary PNP type is MJE2955T. FEATURES:...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3578
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

The MJE3055T is a silicon epitaxial-base NPN transistor in Jedec T0-220 package. It is for power switching circuits intended for general-purpose amplifiers. The complementary PNP type is MJE2955T.

FEATURES:

  • DC Current Gain Specified to 10 Amperes
  • High Current Gain — Bandwidth Product —fT = 2.0 MHz (Min) @ IC = 500 mAdc
SPECIFICATIONS
Model MJE3055T
Brand ST Microelectronics
Collector–Emitter Sustaining Voltage 60V
Collector Cutoff Current (VCE= 30 Vdc, IB= 0)
700A
Collector Cutoff Current(VCE= 70 Vdc, VEB(off)= 1.5 Vdc)
1mA
No. of Pins 3
Collector Cutoff Current(VCB= 70 Vdc, IE= 0)
1mA
Emitter Cutoff Current (VBE= 5.0 Vdc, IC= 0)
1mA
Current–Gain–Bandwidth Product (IC= 500 mAdc, VCE= 10 Vdc, f = 500 kHz)
2Mhz
