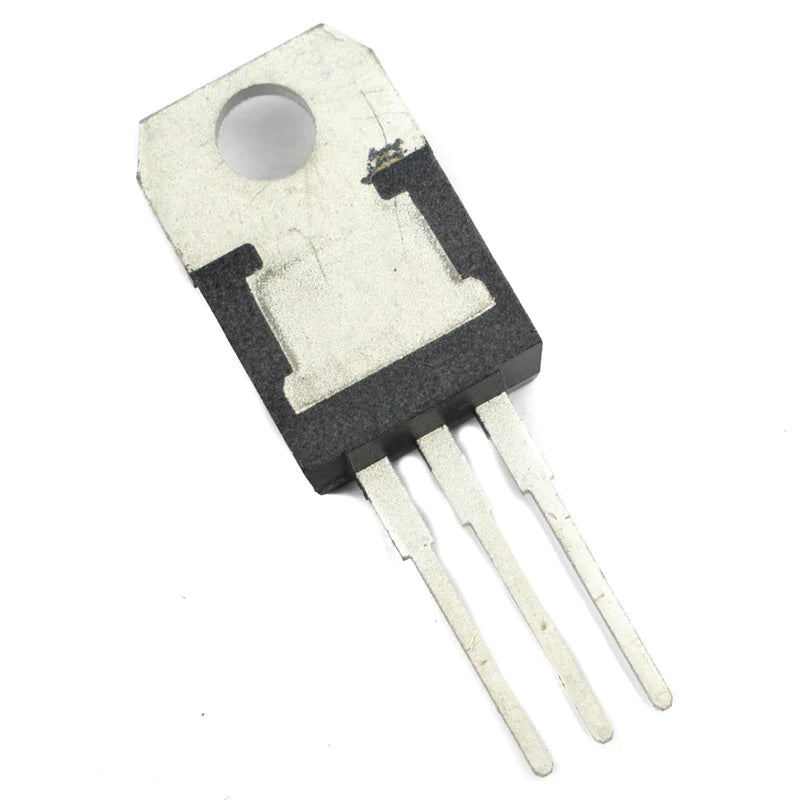

STM STP55NF06 60V 50A N-Channel Power MOSFET TO-220

STM STP55NF06 60V 50A N-Channel Power MOSFET TO-220

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description STP55NF06 power MOSFETs have been developed using STMicroelectronics' unique "Single Feature Size" strip-based process, which is specifically designed to minimise input capacitance and gate charge. The resulting transistor shows...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3592
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

STP55NF06 power MOSFETs have been developed using STMicroelectronics' unique "Single Feature Size" strip-based process, which is specifically designed to minimise input capacitance and gate charge. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics that make it suitable for use as a primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, also for applications where low gate driving charge is required.

Applications:
  • High Current, High Switching Speed
  • Motor Control
  • Audio Amplifier
  • DC-DC & DC-AC Converters
  • Automotive
SPECIFICATIONS
Model STP55NF06
Brand STMicroelectronics
Drain-Source Voltage 60V DC
Drain-Gate Voltage 60V DC
Gate-Source Voltage ±20V DC
Drain Current 50A @ 25°C, 35A @100°C
Mounting Through Hole
Package TO-220
Pulsed Drain Current 200A
Power Dissipation 30W
Single Pulse Avalanche Energy 350mJ
Operating Temperature -55°C to 175°C
