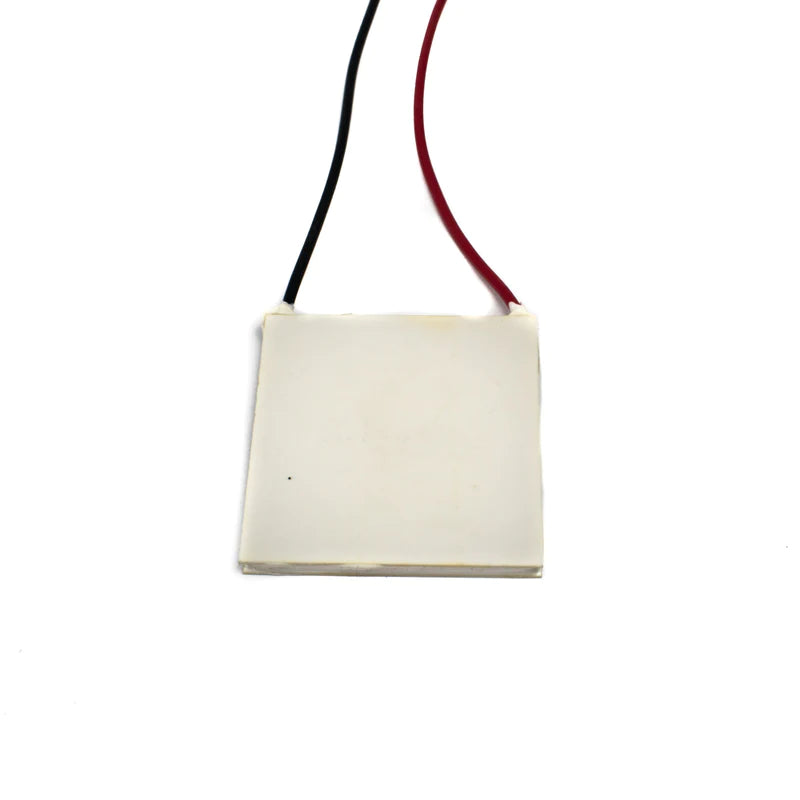

The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm. A thermoelectric cooling (TEC) module is an electronic component made of semiconductors that acts as a tiny heat pump. Heat will be transferred from one side of the module to the other when a DC power source is applied to a TEC. It generates both a chilled and a hot side. They are frequently used in industrial fields, such as computer CPUs, CCDs, portable refrigerators, and medical devices.
| Model | TEC1-12715 |
| Input Voltage | 12-15.4V DC |
| Max Input Current | 15A |
| Max. Operating Temperature | 200°C |
| Resistance | 0.75±0.05 ohm |
| Max. Temperature Difference | 70°C |
| Size | 40x40x3.5mm |
