Description

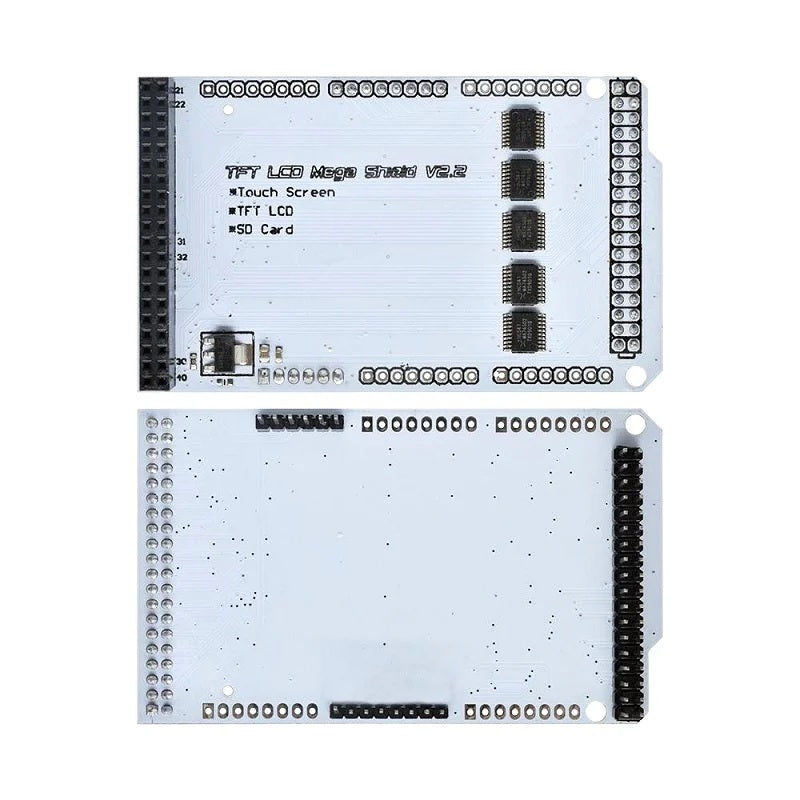

TFT LCD Expansion Shield V2.2 For Arduino MEGA using this TFT LCD Mega Expansion Shield V2.2 for Arduino MEGA the users can now directly plug the LCD shields from 3.2″ to 5″ onto the Arduino Mega board.
This shield supports 16-bit mode. Arduino Mega board has enough pins for one to use SD card and Touch function simultaneously. The shield Support: TFT 3.2” 4.3” 5.0” 7.0”
TFT01 LCD works in 3.3V so that it can not be used directly on top of the Arduino motherboard to make the TFT01 LCD compatible for use with the Arduino board. Designed this section TFT Shield, it can be directly plugged into Arduino board Using the TFT01 LCD module.
The TFT01 LCD is now supported 16-bit mode, it will not exist encounter like in 328S, only using a set of SD card interface or touch screen interface for Arduino Mega256.

Features

• Operating Voltage: 3.3VDC
• Fully compatible with Arduino MEGA
• Support 2.4″ and 3.2″ TFT display module
• Support both 8 bit and 16-bit mode
• Support both SD card and touch function simultaneously
• Length: 90 mm
• Width: 53 mm
• Height: 13 mm
• Weight: 12 gm

Package Include

• 1 x TFT LCD Expansion Shield V2.2 For Arduino MEGA

*Note: Product Image are shown for illustrative purposes only and may different from the actual product.
