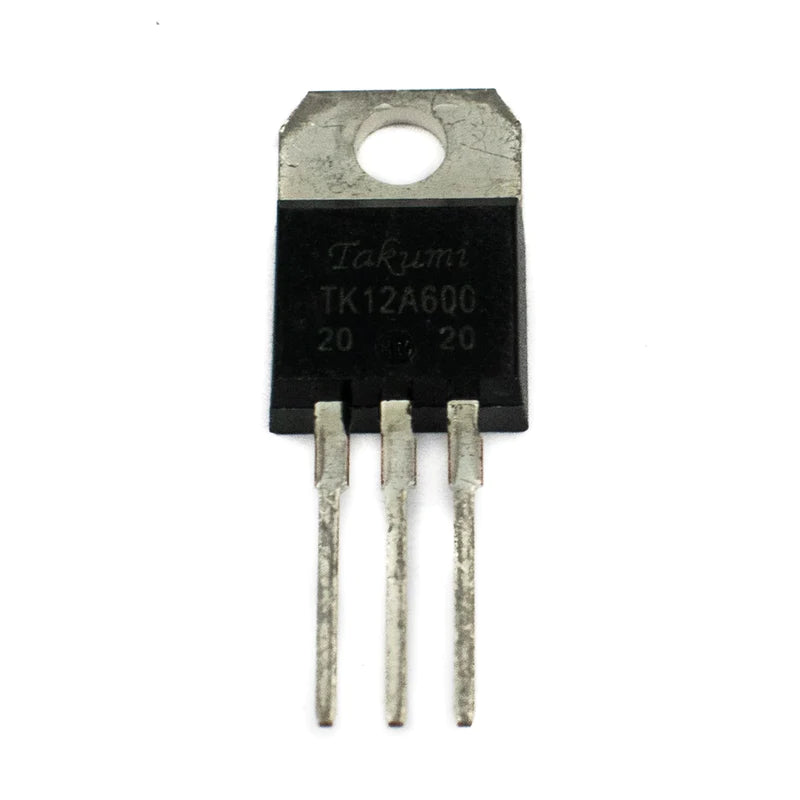

TK12A600 N-Channel MOSFET TO-220 Package

TK12A600 N-Channel MOSFET TO-220 Package

Description TK12A600 is a N-Channel MOSFET with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications. Features...
19 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-3678
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

TK12A600 is a N-Channel MOSFET with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications.

Features

  •  Low drain-source ON resistance: RDS (ON) = 0.45 Ω (typ.)
  •  High forward transfer admittance: ⎪Yfs⎪ = 7.5 S (typ.)
  •  Low leakage current: IDSS = 10 μA (max) (VDS = 600 V)
  • Enhancement-mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA)
SPECIFICATIONS
 Model TK12A600N
Drain to Source Voltage (Vds) 600V
Gte to source voltage (Vgs) ±30V
Drain Current (Id) 12A
Drain Power Dissipation (Pd) 45W
Single Pulse Avalenche Energy 359mJ
Avalanche Current 12A
Repetitive Avalanche Energy 4.5mJ
Channel Temperature 150°C
