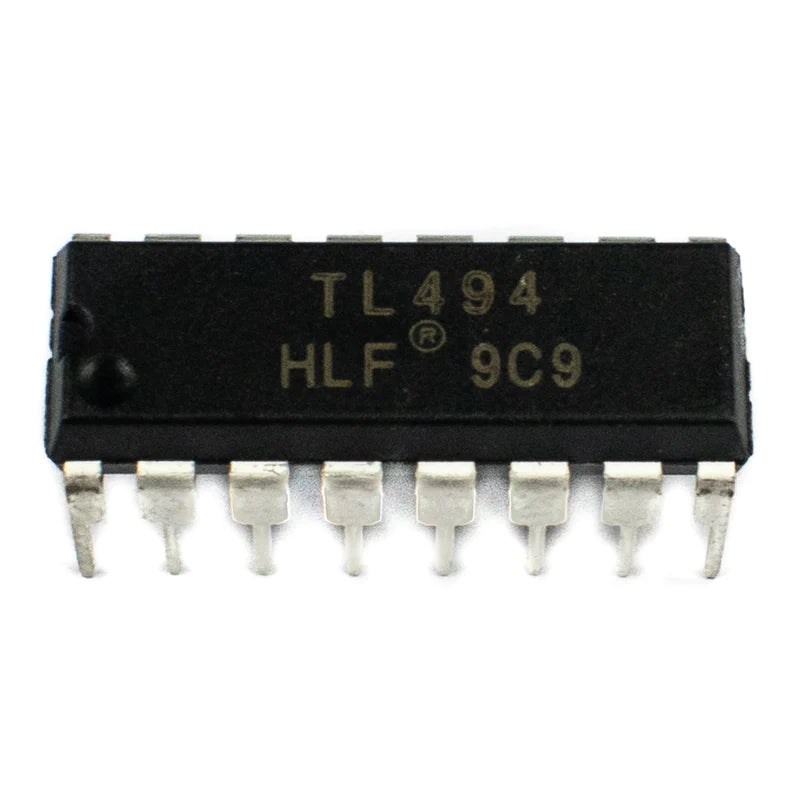

TL494 PWM Control IC

TL494 PWM Control IC

₹ 33.00
₹ 40.00 ₹ 33.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The TL494 is a fixed frequency, pulse width control circuit IC designed primarily for switched-mode power supply.  Features Complete Pulse Width Modulation Control Circuitry On-Chip Oscillator with Master or...
15 people are viewing this right now

Availability: In stock

SKU: ATC-4083
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Digital Logic
View full product details

Description

The TL494 is a fixed frequency, pulse width control circuit IC designed primarily for switched-mode power supply.

Features

  • Complete Pulse Width Modulation Control Circuitry
  • On-Chip Oscillator with Master or Slave Operation
  • On-Chip Error Amplifiers
  • On-Chip 5.0 V Reference
  • Adjustable Deadtime Control
  • Uncommitted Output Transistors Rated to 500 mA Source or Sink
  • Output Control for Push-Pull or Single-Ended Operation
  • Undervoltage Lockout
SPECIFICATIONS
Operating Voltage 42V DC
Collector Output Voltage 42V
Collector Output Current 500mA
Amplifier Input Voltage Range -0.3V to 42V
Power Dissipation @ TA≤45°C 1000mW
Thermal Resistance 80°C/W
Operating Frequency 1kHz to 300kHz
Number of Pins 16
