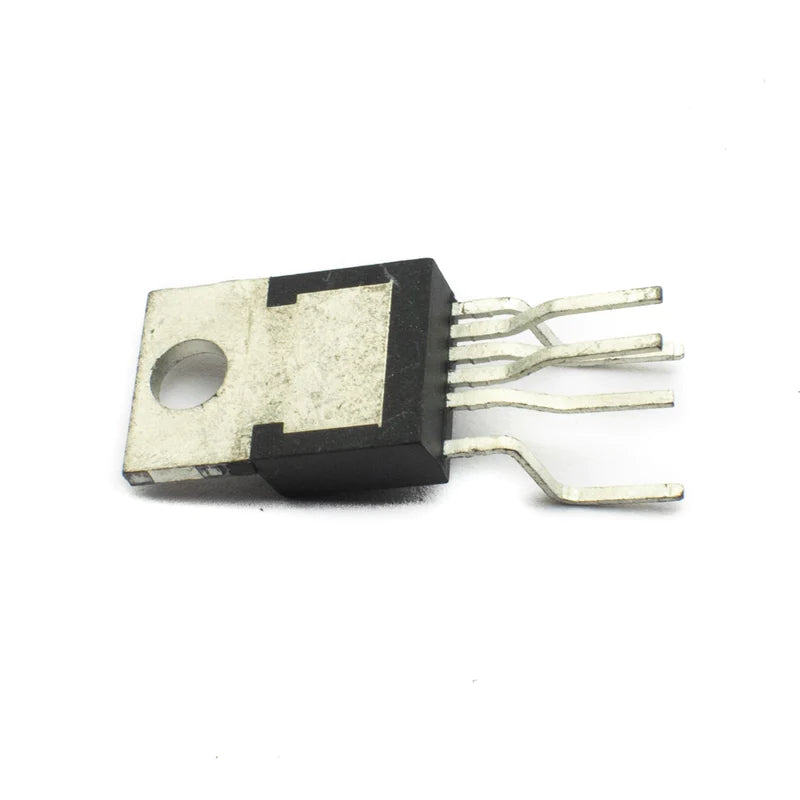

TOP245YN TOP Switch-GX, Design Flexible, EcoSmart, Integrated Off-line Switcher

TOP245YN TOP Switch-GX, Design Flexible, EcoSmart, Integrated Off-line Switcher

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description TOP Switch-GX uses the same proven topology as TOPSwitch, cost-effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip....
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3666
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

TOP Switch-GX uses the same proven topology as TOPSwitch, cost-effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new features have been included to lower system costs while also improving design flexibility, performance, and energy efficiency. It has the following transparent characteristics: Soft start, 132 kHz switching frequency (automatically lowered at low load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown, and bigger creepage packages are also available. Furthermore, all essential parameters (such as current limit, frequency, and PWM gain) have tighter temperature and absolute tolerances to simplify design and save system cost.

Features

  • Extended power range for higher power applications
  • No heatsink required up to 34 W using P/G packages
  • Features eliminate or reduce the cost of external components
  • Fully integrated soft-start for minimum stress/overshoot
  • Externally programmable accurate current limit
  • Wider duty cycle for more power, smaller input capacitor
  • Separate line sense and current limit pins on Y/R/F packages
  • Line under-voltage (UV) detection: no turn off glitches
  • Line overvoltage (OV) shutdown extends line surge limit
  • Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line
  • Frequency jittering reduces EMI and EMI filtering costs
  • Regulates to zero load without dummy loading
  • 132 kHz frequency reduces transformer/power supply size
  • Half frequency option in Y/R/F packages for video applications
  • Hysteretic thermal shutdown for automatic fault recovery
  • Large thermal hysteresis prevents PC board overheating

SPECIFICATIONS

230 VAC ± 15%

Adapter

Open Frame



40W

85W

85-265 VAC

-Adapter

-Open Frame



26W

60W

DRAIN Voltage  -0.3 V to 700 V
DRAIN Peak Current 2.88A
CONTROL Voltage  -0.3 V to 9
V CONTROL Current  100 mA
LINE SENSE Pin Voltage -0.3 V to 9 V
FREQUENCY Pin Voltage  -0.3 V to 9 V
Storage Temperature  -65 °C to 150 °C
Operating Junction Temperature -40 °C to 150 °C
Switching Frequency

FREQUENCY Pin Connected to SOURCE 124 - 140kHz

FREQUENCY Pin Connected to CONTROL 61.5 - 70.5kHz

FREQUENCY Pin Threshold Voltage 2.9V
FREQUENCY Pin Input Current 10 - 100 µA
Dimensions
