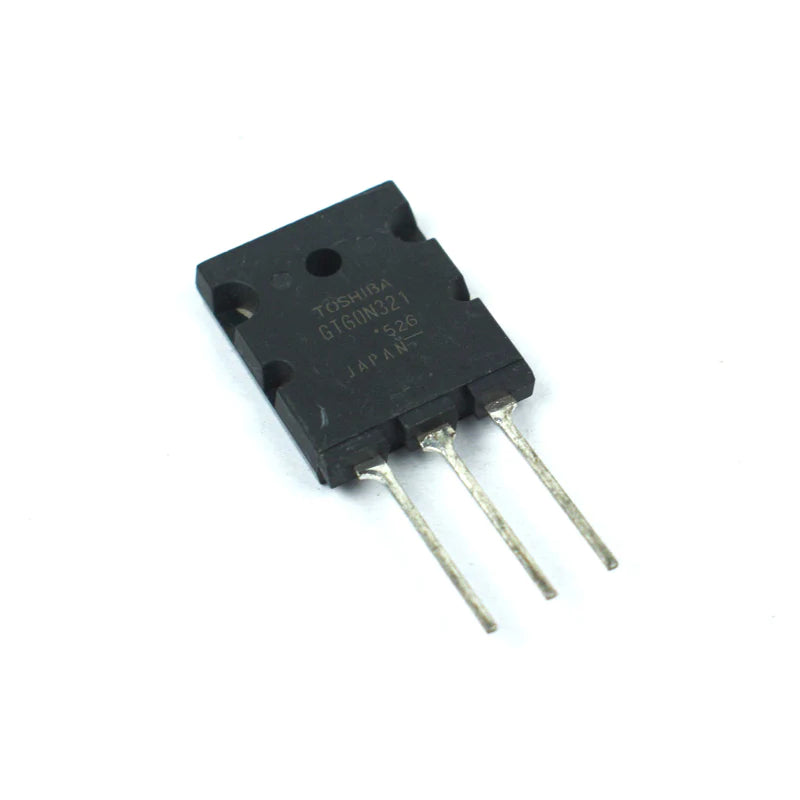

TOSHIBA GT60N321 1000V/60A N-Channel IGBT

TOSHIBA GT60N321 1000V/60A N-Channel IGBT

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description TOSHIBA GT60N321 is a Silicon N-Channel Insulated Gate Bipolar Transistor with Low saturation voltage VCE (sat) is 2.3 V (Typ.) (IC = 60 A). It is a through-hole(THD) active...
21 people are viewing this right now

Availability: In stock

SKU: ATC-3558
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

TOSHIBA GT60N321 is a Silicon N-Channel Insulated Gate Bipolar Transistor with Low saturation voltage VCE (sat) is 2.3 V (Typ.) (IC = 60 A). It is a through-hole(THD) active component with three terminals: gate, collector, and emitter. It is a fourth-generation IGBT unit and It is often used in high-power switching applications.

Datasheet

Features

  • FRD included between emitter and collector
  • Enhancement mode type
  • High speed
                   IGBT : TF = 0.25 μs (Typ.) (IC = 60 A)
                    FRD : TRR = 0.8 μs (typ.) (di/dt = −20 A/μs)
  • Low saturation voltage
SPECIFICATIONS
 Model GT60N321
 Brand TOSHIBA
 Collector-Emitter Voltage (VCES) 1000V
 Gate-Emitter Voltage (VGES) ±25V
 DC Collector-Current (IC) 60A
 Collector Power Dissipation (Pc) 170W
 Junction Temperature (TJ) 150°C
 Operating Temperature -55~150°C
 Screw Torque 0.8 Nm.
 Mounting Type  Through-hole
