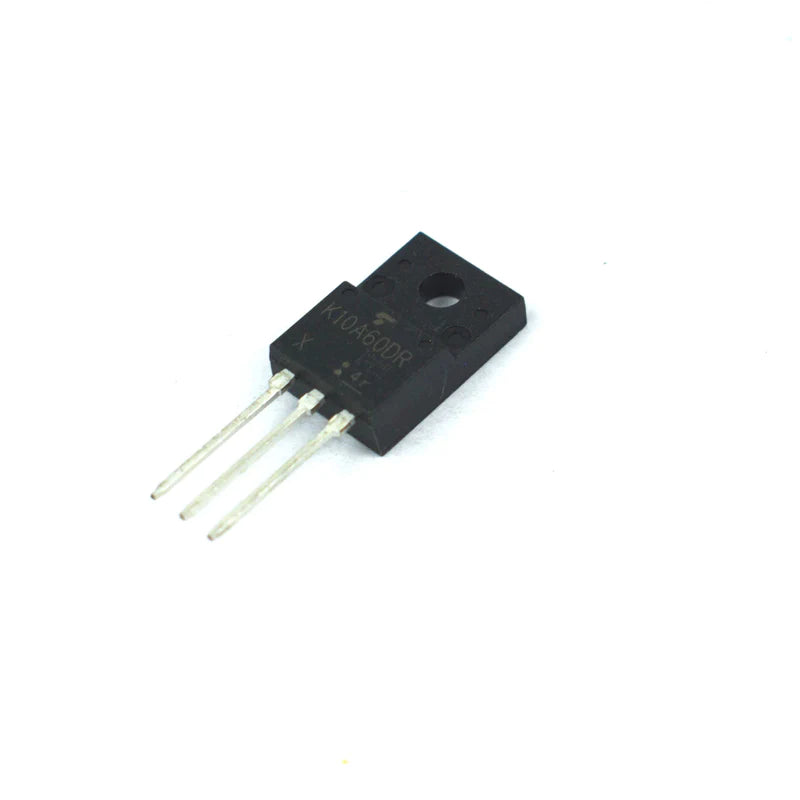

TOSHIBA K10A60DR 600V, N-Channel MOSFET TO-220FP

TOSHIBA K10A60DR 600V, N-Channel MOSFET TO-220FP

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description TOSHIBA K10A60DR 600V, N-Channel MOSFET TO-220FP. In there the majority of carriers are the electrons which are responsible for the flow of current in MOSFET. It is a through...
29 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3656
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

TOSHIBA K10A60DR 600V, N-Channel MOSFET TO-220FP. In there the majority of carriers are the electrons which are responsible for the flow of current in MOSFET. It is a through hole(THD) active component that consists of three terminals Gate, Drain, and Source. It is often used in switching regulator applications.

Features

  • Low drain-source ON-resistance: RDS (ON) = 0.62 Ω (Typ.)
  • High forward transfer admittance: |Yfs| = 6.0 S (Typ.)
  • Low leakage current: IDSS = 10 μA (VDS = 600 V)
  • Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA)

Datasheet

SPECIFICATIONS
 Model K10A60DR
 Brand TOSHIBA
 Mounting Type Through Hole
 Transistor Polarity N-Channel
 Drain-Source Voltage (VSS) 600V
 Gate-Source Voltage (VGSS)
±30V
 DC Drain-Current (ID) 10A
 Pulse Drain-Current (IDP) 40A
 Drain Power Dissipation (PD) 45W
 Storage Temperature Range -55~150 °C
 Package TO-220FP
