A thyristor is a solid-state semiconductor device with four layers of alternating P- and N-type materials. It acts exclusively as a bistable switch, conducting when the gate receives a current trigger, and continuing to conduct until the voltage across the device is reversed biased, or until the voltage is removed .

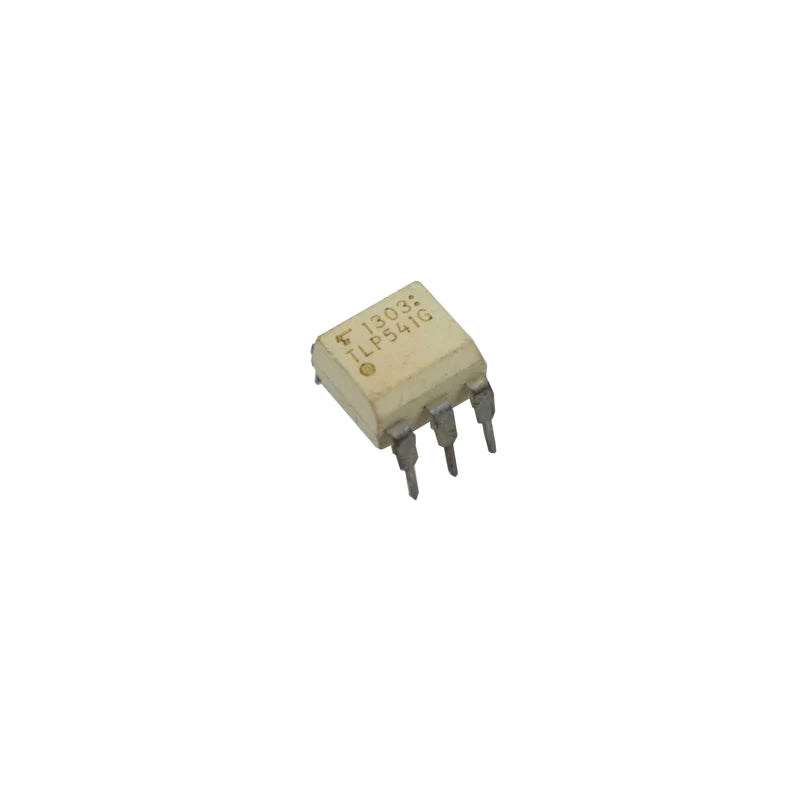

The TOSHIBA TLP541G is a programmable Controller, AC-Output Solid State Relay Module that is a Photocoupler consists of a photo−thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
Features:-
| Model | TLP541G |
| Brand | Toshiba |
| Isolation Voltage | 2500 Vrms |
| If - Forward Current | 70 mA |
| Vf - Forward Voltage | 1.15 V |
| Off-state Output Voltage - VDRM | 400 V |
| Maximum Continuous Output Current | 150 mA |
| Operating Temperature | -30 °C – 85 °C |
| Package | DIP |
