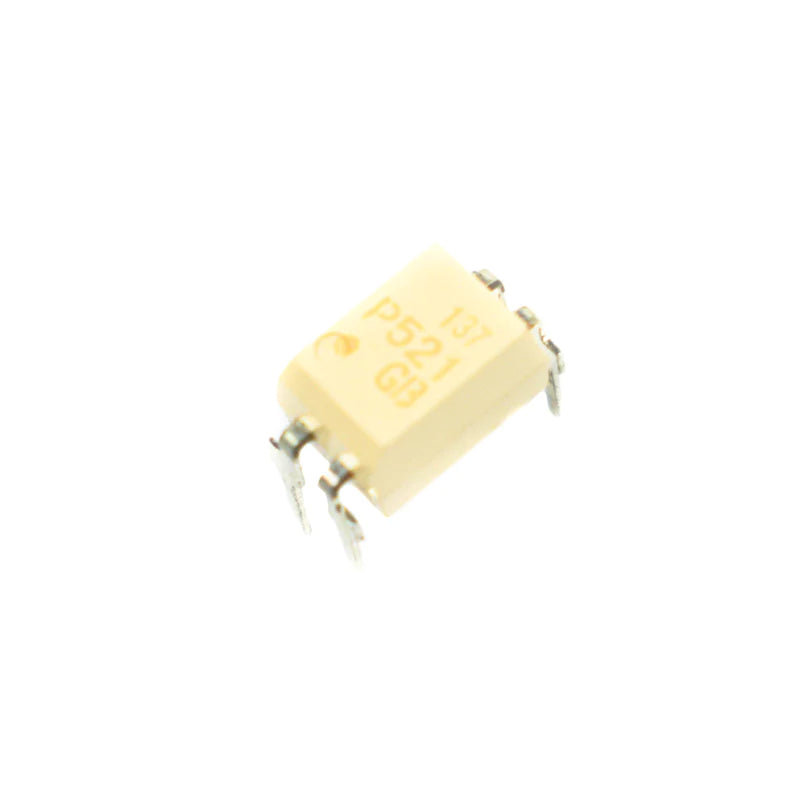

Toshiba TLP521-Optocoupler & Photo -Transistor 30V DIP

Toshiba TLP521-Optocoupler & Photo -Transistor 30V DIP

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Phototransistors are a form of bipolar transistor that is sensitive to light - having the gain of a transistor they are much more sensitive than photodiodes and find uses...
27 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4181
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Optocoupler IC
View full product details

Description

Phototransistors are a form of bipolar transistor that is sensitive to light - having the gain of a transistor they are much more sensitive than photodiodes and find uses in many light detection circuit designs.

Optocouplers (also known as optoisolators, photocouplers, or optical isolators) are electronic components that use light to transfer electrical signals between two separate circuits.
Galvanic isolation is a design technique that separates electrical circuits to eliminate stray currents.
The TLP521is an optocoupler that consists of a photo-transistor is optically connected to a gallium arsenide infrared emitter diode. When the IR LED is turned on, the light from the LED is collected by the transistor's receiver and it conducts. This device is suitable for applications requiring galvanic isolation, such as Switch Mode Power Supplies, relay driver boards, etc.



SPECIFICATIONS
Model TLP521
Brand Toshiba
 Input Diode Forward Voltage 1.15V
Reverse Voltage 5V
Emitter-Collector Breakdown Voltage 7V
Collector-Emitter Voltage 55V (min)

Current Transfer Ratio

Rank GB

50%(min)

100%(min)

Isolated Voltage

2500 Vrms

Collector-Emitter Breakdown Voltage

55V

Collector Current

10mA (max)

Cut-off frequency

80 kHz

Rise Time

2us

Fall Time

3us

Max. Junction Temperature

125°C

Mounting

SMD
