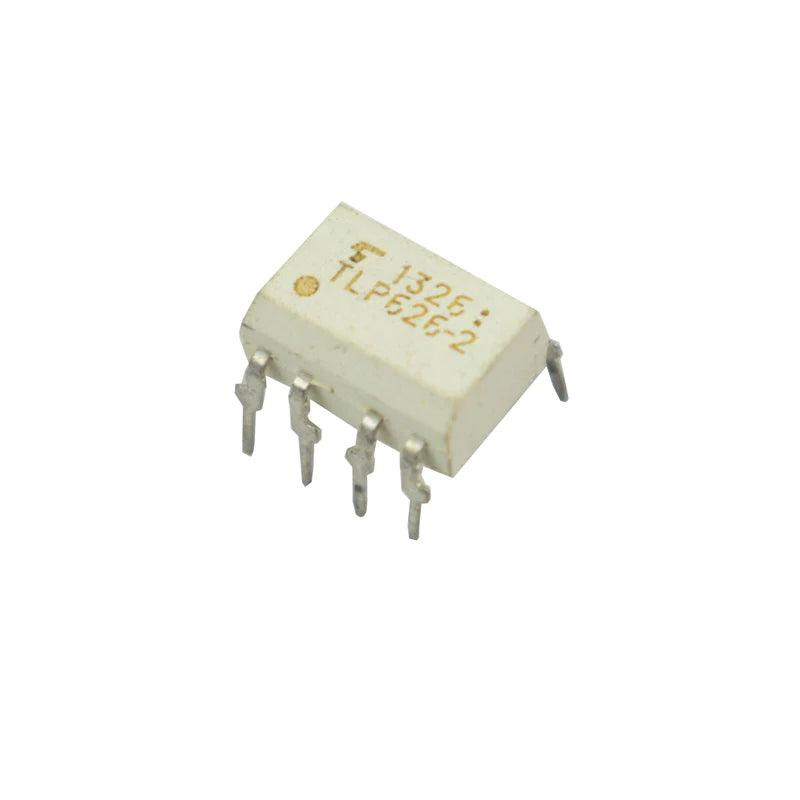

This is the TLP626-2 IC optocoupler manufactured by Toshiba. A photocoupler or optocoupler is an electronic component that is used to transmit analog or digital information (electrical signals) between two isolated, different circuits by using light while maintaining the electrical isolation of potentials up to 5000 times RMS Voltage. This optocoupler consists of two infrared emitting diodes connected in inverse parallel, optically coupled to a photo-transistor. The TLP626-2 also offers two isolated channels in an eight lead plastic DIP.
Features
Applications
For more information, refer to: Datasheet
| Model |
TLP626-2 |
| Brand | TOSHIBA |
| Isolation Voltage | 5000 Vrms |
| Output Supply Voltage | 24V |
| Input Reverse Voltage | 5V |
| Input Forward Current | 50 mA |
| Output Collector Power Dissipation | 100 mW |
| Operating Temperature | -55°C - 100°C |
| Package | DIP |
| No. of Channels | 2 |
