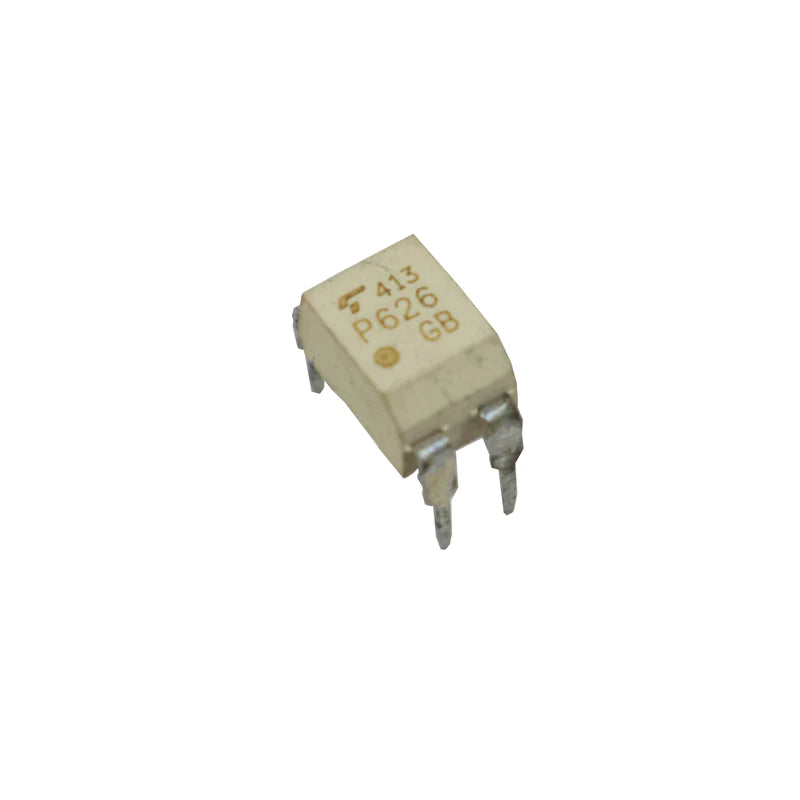

TLP626 is a transistor output optocoupler. It is specifically a low input transistor with AC input. This optocoupler is widely used in operations involving the isolation of high-speed signals from noise-sensitive circuits. Its common applications include a communication interface, power supply, and AC voltage detection.
TLP626 photocouplers, like most TOSHIBA optocouplers, are made composed of a high-intensity infrared light-emitting diode (LED) optically coupled to a photodetector constructed utilizing the most recent method. The LED-photodetector couple is enclosed in an electrically insulated raisin which is almost transparent in nature. TLP626 is a very small and light package hence is easy to handle and mount on almost any printed circuit board.
Features
| Manufacturer |
Toshiba |
| Product Category |
Transistor Output Optocouplers |
| RoHS | Certified |
| Output Type |
NPN Phototransistor |
| Number of Channels |
1 Channel |
| Forward Current | 50 mA |
| Maximum Collector-Emitter Voltage |
55 V |
| Maximum Collector Current | 50 mA |
| Isolation Voltage | 5000 Vrms |
| Max Collector-Emitter Saturation Voltage |
0.4 V |
| Forward Voltage | 1.3 V |
| Power Dissipation | 150 mW |
| Min/Max Operating Temperature | - 55°+ 100°C |
| Current Transfer Ratio | 1200 % |
| Dimensions | 3.65 mm*9.66 mm*6.4 mm |
| Package | DIP |
