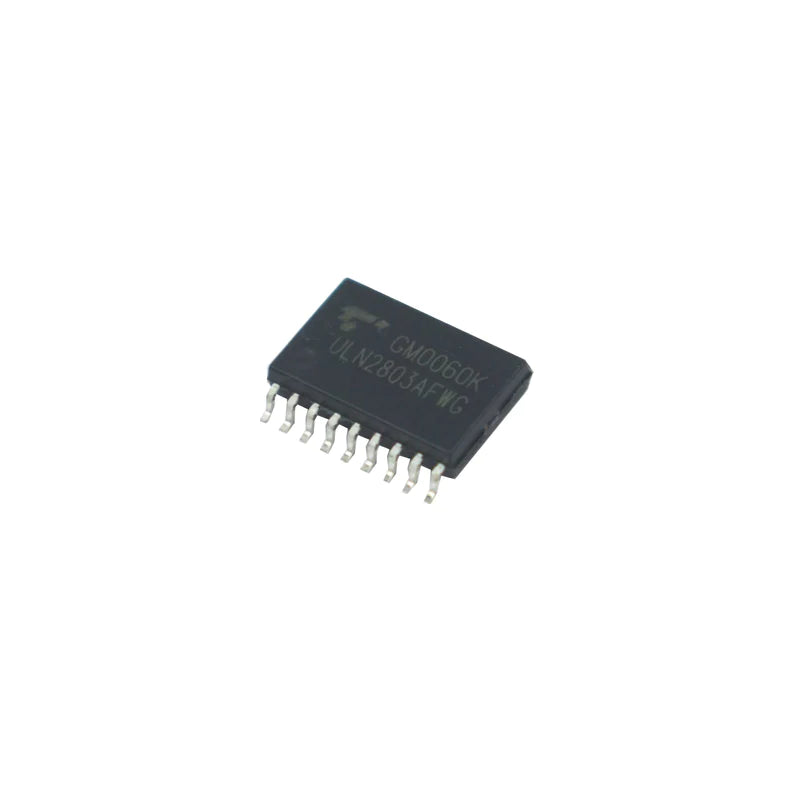

ULN2803AFWG is a bipolar digital integrated circuit with 8-Ch Darlington Sink Driver. It is a high voltage, high current Darlington driver made up of eight NPN Darlington pairs. For switching inductive loads, all units include integral clamp diodes. Relay, hammer, lamp, and display (LED) drivers are examples of applications.
Features
| Model | ULN2803AFWG |
| Brand | TOSHIBA |
| Mounting Technology | SMT |
| No of Pin | 18 |
| Output sustaining voltage (VCE) | -0.5~50V |
| Output Current (IOUT) | 500mA/CH |
| Clamp diode reverse voltage (VR) | 50V |
| Clamp diode forward current (IF) | 500mA |
| Power Dissipation (PD) | 1.47W |
| Operating Temperature | -40~85°C |
| Storage Temperature | -55~150°C |
