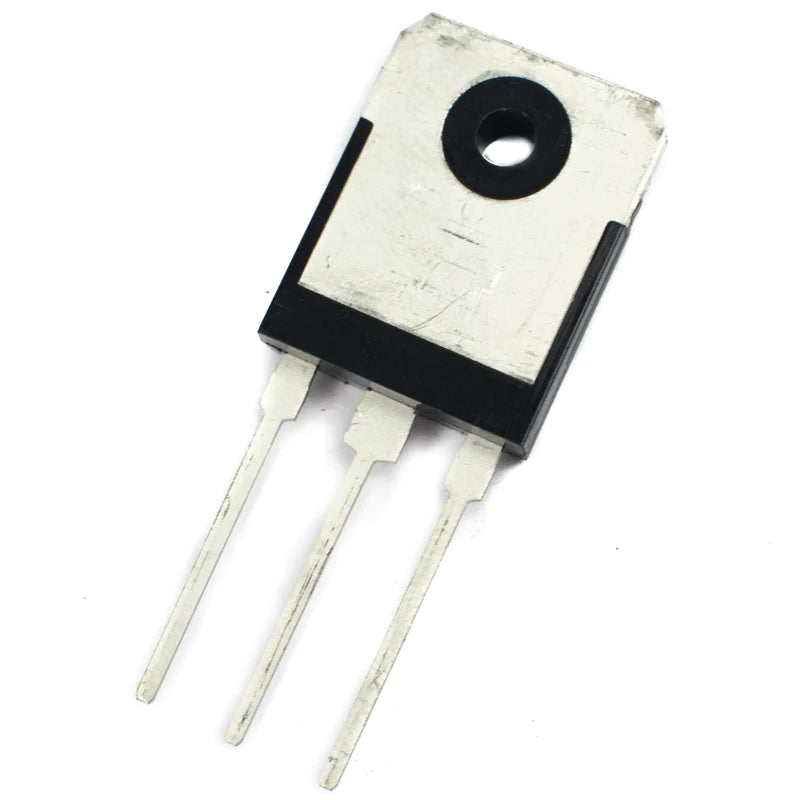

Trino TGAN60N60F2DS 600V Field Stop Trench IGBT Power Transistor

Trino TGAN60N60F2DS 600V Field Stop Trench IGBT Power Transistor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Insulated gate bipolar transistors or IGBTs are a form of a discrete semiconductor device that is generally used for power applications such as inverters, converters and power supplies. IGBT...
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3574
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

Insulated gate bipolar transistors or IGBTs are a form of a discrete semiconductor device that is generally used for power applications such as inverters, converters and power supplies. IGBT transistors have the advantage of combining many of the characteristics of MOSFETs and bipolar transistors, giving the high voltage and current handling capabilities of bipolar transistors with the high-speed switching and low gate current performance of power MOSFETs.

Features

  • 600V Field Stop Trench Technology
  • High-Speed Switching
  • Low Conduction Loss
  • Positive Temperature Coefficient
  • Easy Parallel Operation
  • RoHS Compliant
  • JEDEC Qualification

Datasheet

SPECIFICATIONS
Model TGAN60N60F2DS
Brand TRINO
Type of IGBT Channel N-Channel
Maximum Power Dissipation @25°C 347W
Max. Collector-Emitter Voltage 600V
Collector-Emitter Saturation Voltage 1.8V DC
Max. Gate Emitter  Voltage 20V DC
Max. Collector Current 120A
Max. Junction Temperature 150°C
Rise Time 125ns
Max. Collector Capacity 170pF
Package TO-3PN
