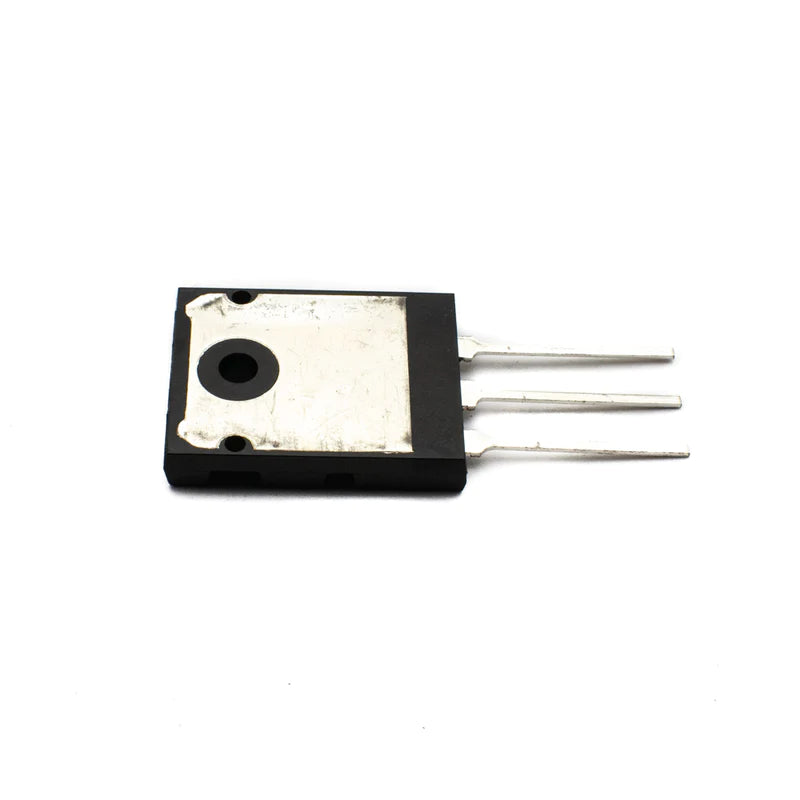

TTA1943 TOSHIBA - High Power Amplifier Transistor - PNP

TTA1943 TOSHIBA - High Power Amplifier Transistor - PNP

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The TTA1943 is a high power PNP transistor developed by Toshiba. It is often utilized in high power audio circuits or AF amplifiers due to its high current gain...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3581
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

The TTA1943 is a high power PNP transistor developed by Toshiba. It is often utilized in high power audio circuits or AF amplifiers due to its high current gain and collector current. The TTA1943 is a silicon through-hole transistor in a TO-3 package. Recommended for 100-W high-fidelity audio frequency amplifier output stage.

SPECIFICATIONS

Characteristics

Symbol

Rating

collector-base voltage

VCBO

-230V

collector-emitter voltage

VCEO

-230V

emitter-base voltage

VEBO

-5V

Collector current

IC

-15A

Base current

IB

-1.5A

Collector power dissipation (Tc=25°C)

Pc

150W

Junction temperature

Tj

150°C

Storage temperature range

Tstg

-55 to 150°C
