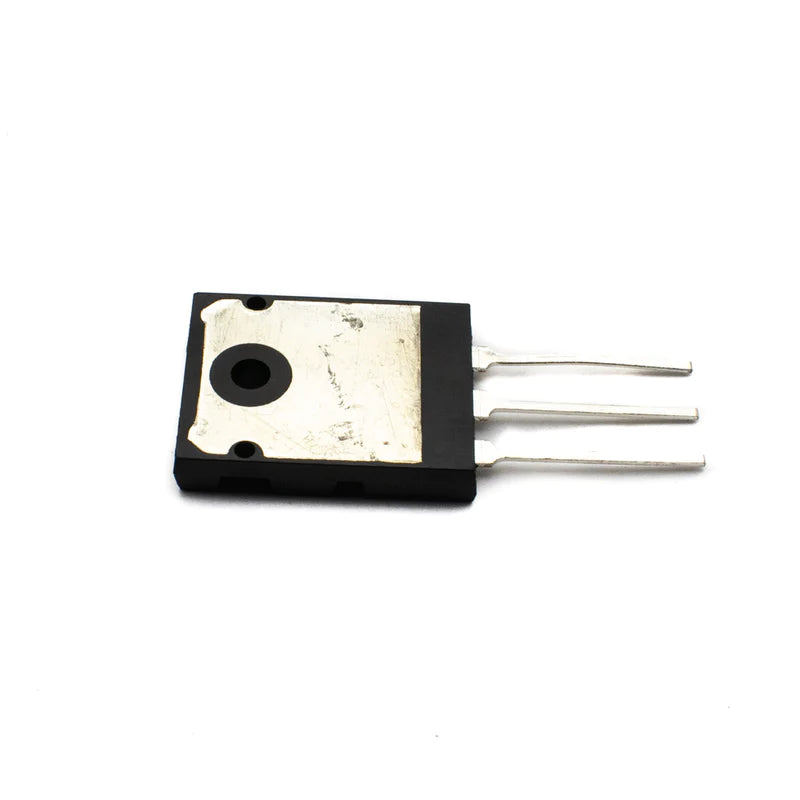

TTC5200 TOSHIBA Silicon Transistor NPN Triple Diffused

TTC5200 TOSHIBA Silicon Transistor NPN Triple Diffused

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The TTC5200 is a high power NPN transistor developed by Toshiba. It is often utilized in high power audio circuits or AF amplifiers due to its high current gain...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3585
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

The TTC5200 is a high power NPN transistor developed by Toshiba. It is often utilized in high power audio circuits or AF amplifiers due to its high current gain and collector current. The TTC5200 is a silicon through-hole transistor. Recommended for 100-W high-fidelity audio frequency amplifier output stage.

SPECIFICATIONS

Characteristics

Symbol

Rating

collector-base voltage

VCBO

230V

collector-emitter voltage

VCEO

230V

emitter-base voltage

VEBO

5V

Collector current

IC

15A

Base current

IB

1.5A

Collector power dissipation (Tc=25°C)

Pc

150W

Junction temperature

Tj

150°C

Storage temperature range

Tstg

-55 to 150°C
