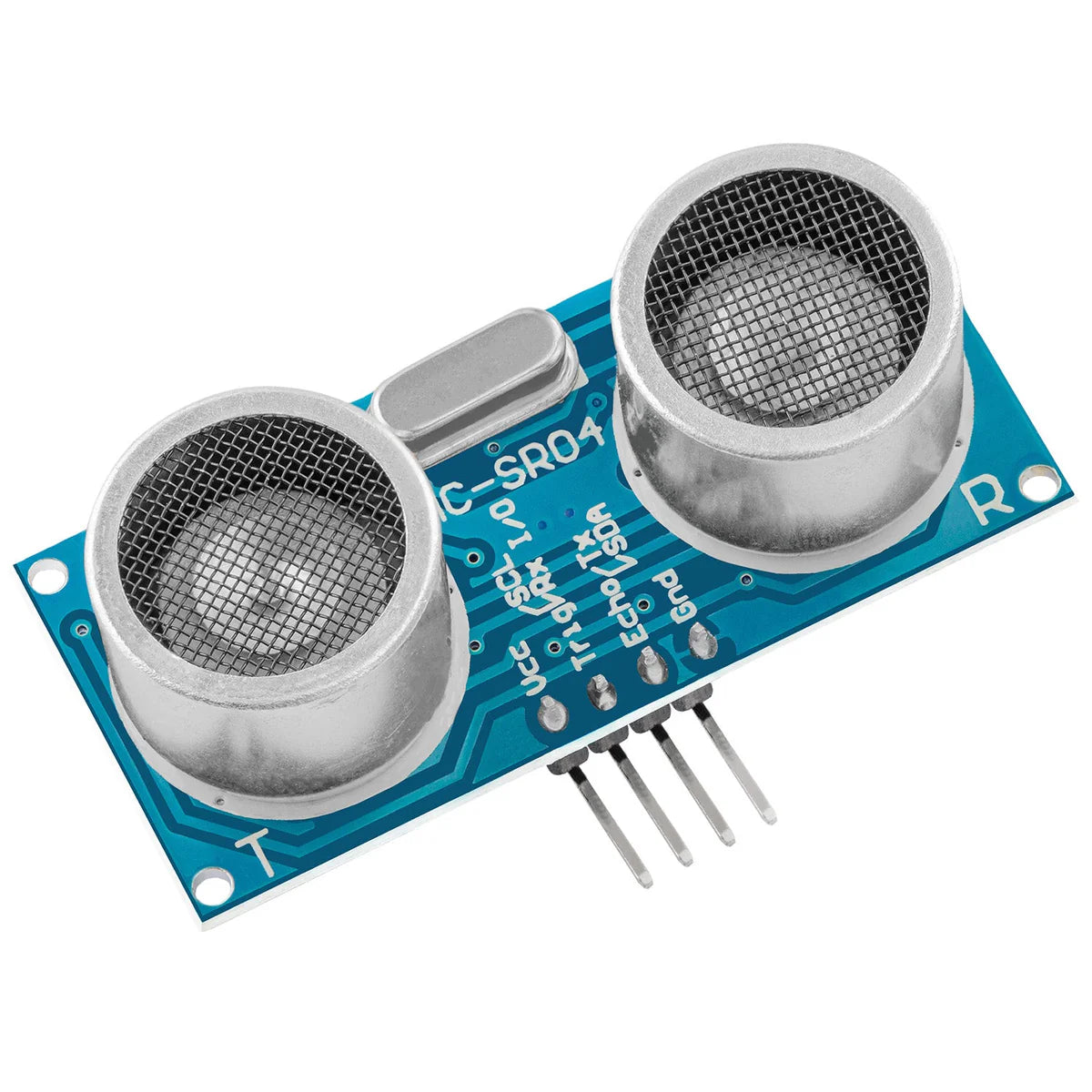

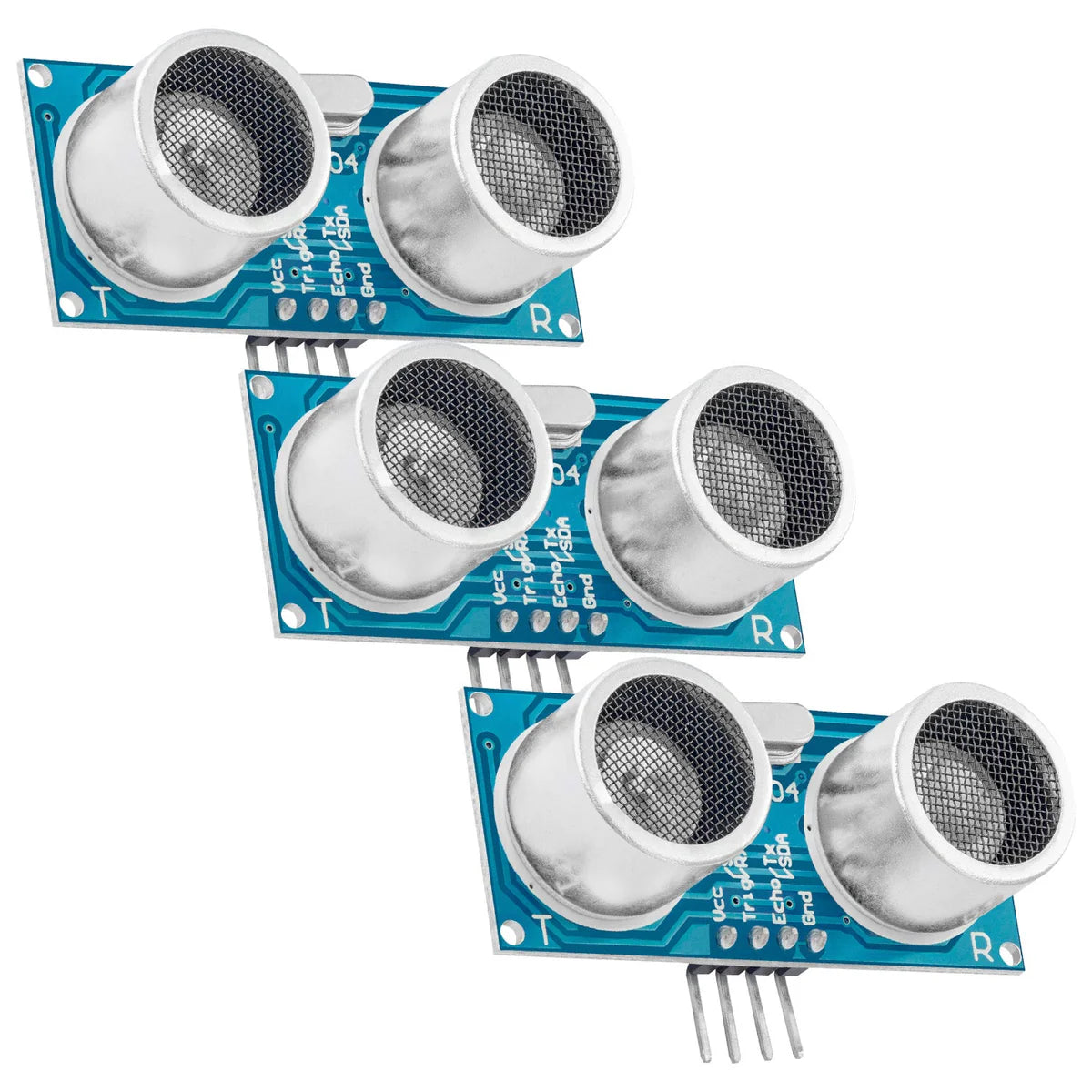

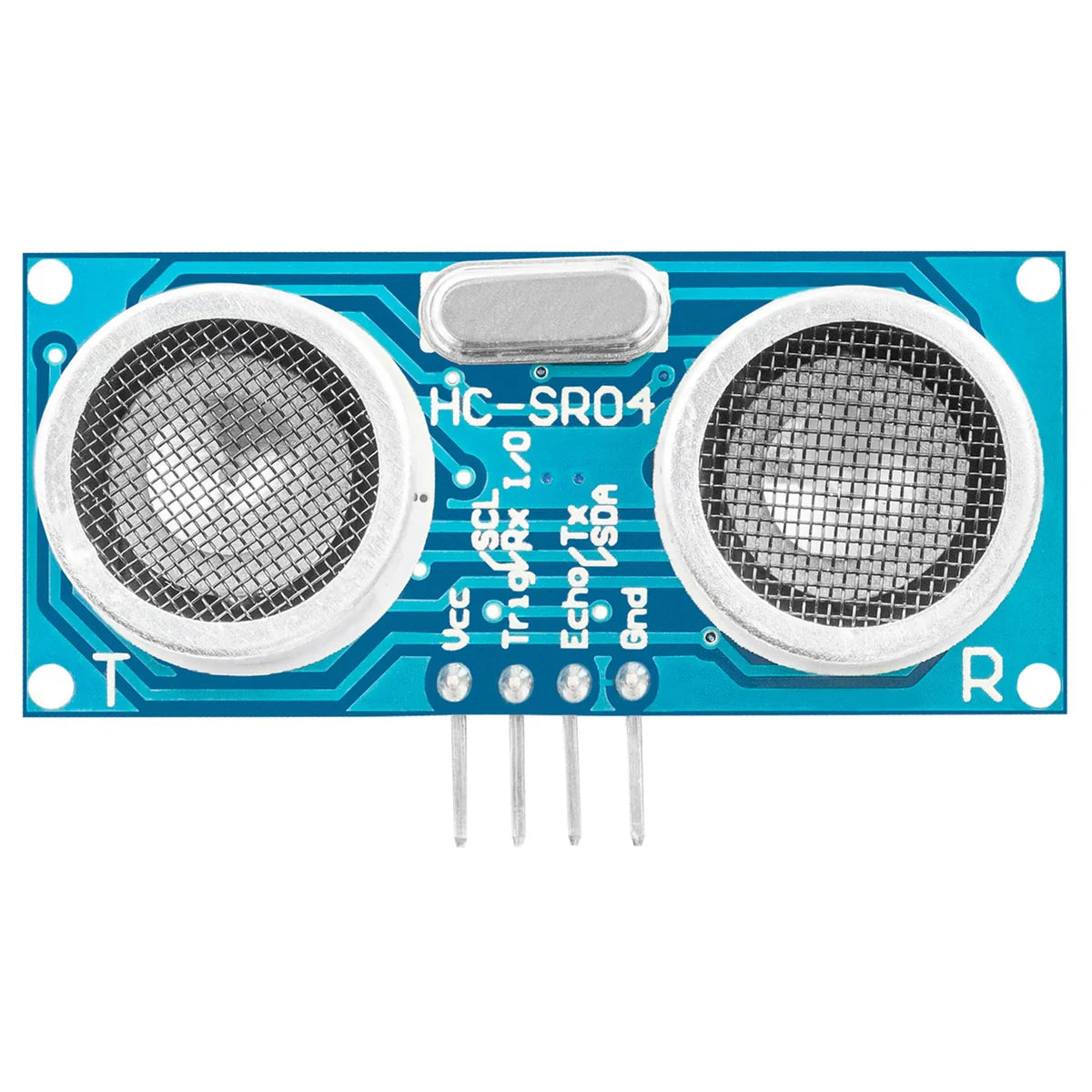

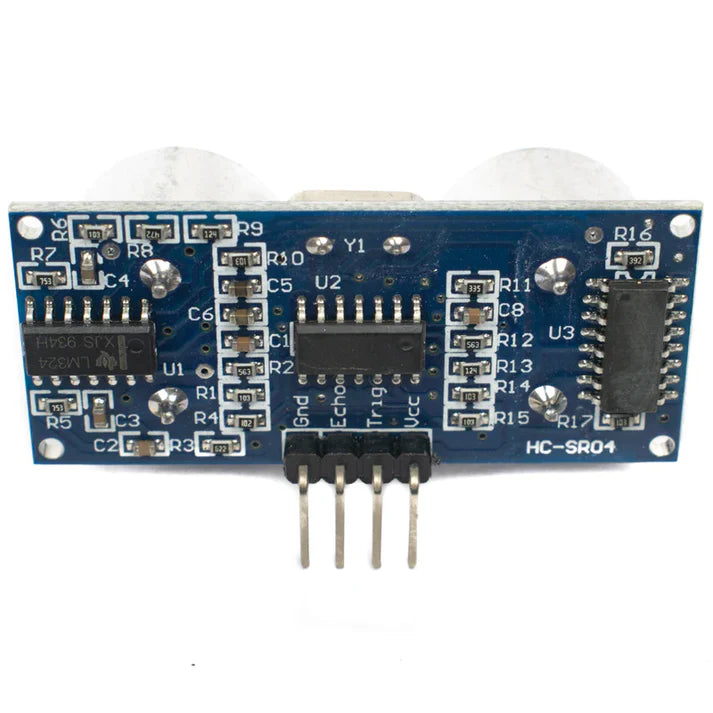

Ultrasonic Sensor Module HC-SR04

Ultrasonic Sensor Module HC-SR04

Regular price ₹ 65.00
Regular price ₹ 79.00 Sale price ₹ 65.00
Sold Out
Tax included. Shipping calculated at checkout.
Description :- This ultrasonic sensor module can be used for measuring distance, object sensor, motion sensors etc. High sensitive module can be used with microcontroller to integrate with motion circuits...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3359
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description :-

This ultrasonic sensor module can be used for measuring distance, object sensor, motion sensors etc. High sensitive module can be used with microcontroller to integrate with motion circuits to make robotic projects and other distance, position & motion sensitive products.

The module sends eight 40Khz square wave pulses and automatically detects whether it receives the returning signal. If there is a signal returning,  a high level pulse is sent on the echo pin. The length of this pulse is the time it took the signal from first triggering to the return echo.

Feature :-

  • Sensor Type: Ultrasonic
  • Output: Digital Sensor
  • Voltage: 5VDC
  • Detection distance: 2cm-400cm (0.02M - 4.0M)
  • Static current: < 2mA
  • Level output: high-5V
  • High precision: up to 0.3cm

Specification :-

  • Power Supply :- +5V DC
  • Working Current :- 15mA
  • Output Signal :- Electrical frequency signal
  • Ranging Distance :- 2cms – 400 cms
  • Resolution :- 0.3 cm
  • Measuring Angle :- 30 degree
  • Dimensions :- 3 x 2 x 1cms
  • Weight :- 15 grams

*Note: Product Image are shown for illustrative purposes only and may different from the actual product
