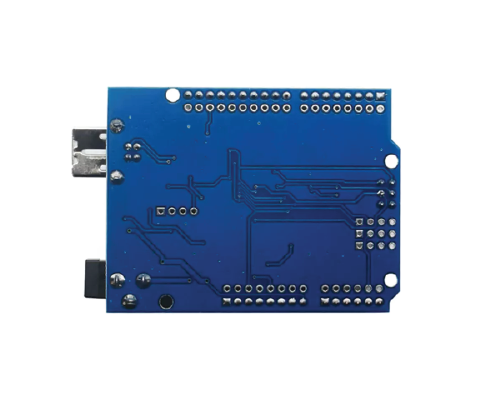

UNO R3 SMD Atmega328P Board Compatible Model

UNO R3 SMD Atmega328P Board Compatible Model

Regular price ₹ 330.00
Regular price ₹ 369.00 Sale price ₹ 330.00
Sold Out
Tax included. Shipping calculated at checkout.
Description :- UNO R3 SMD is the open source Embedded Development board based on Atmega328 SMD Package Microcontroller. Because Atmel is moving more and more of their production capacity to...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4592
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description :-

UNO R3 SMD is the open source Embedded Development board based on Atmega328 SMD Package Microcontroller. Because Atmel is moving more and more of their production capacity to surface mount ICs, the DIP packaged ATmega is becoming more and more difficult to get. To keep up with demand, we now offer the Uno R3 with an SMD ATmega. The board is identical to the PTH version of the Uno, but you won't be able to remove the ATmega without some hot-air. This change shouldn't affect most users



Specification :-

  • Microcontroller :- ATmega328 SMD.
  • Operating Voltage :- 5V.
  • Supply Voltage recommended :- 7-12V DC.
  • Digital I/O Pins :- 14 (of which 6 provide PWM output).
  • Analog Input Pins :- 6.
  • DC Current per I/O Pin :- 40 mA.
  • DC Current for 3.3V Pin :- 50 mA.
  • Flash Memory :- 32 KB (ATmega328) of which 0.5 KB used by bootloader.
  • SRAM :- 2 KB (ATmega328).
  • EEPROM :- 1 KB (ATmega328).
  • Clock Speed :- 16 MHz.

*Note: Product Image are shown for illustrative purposes only and may different from the actual product
