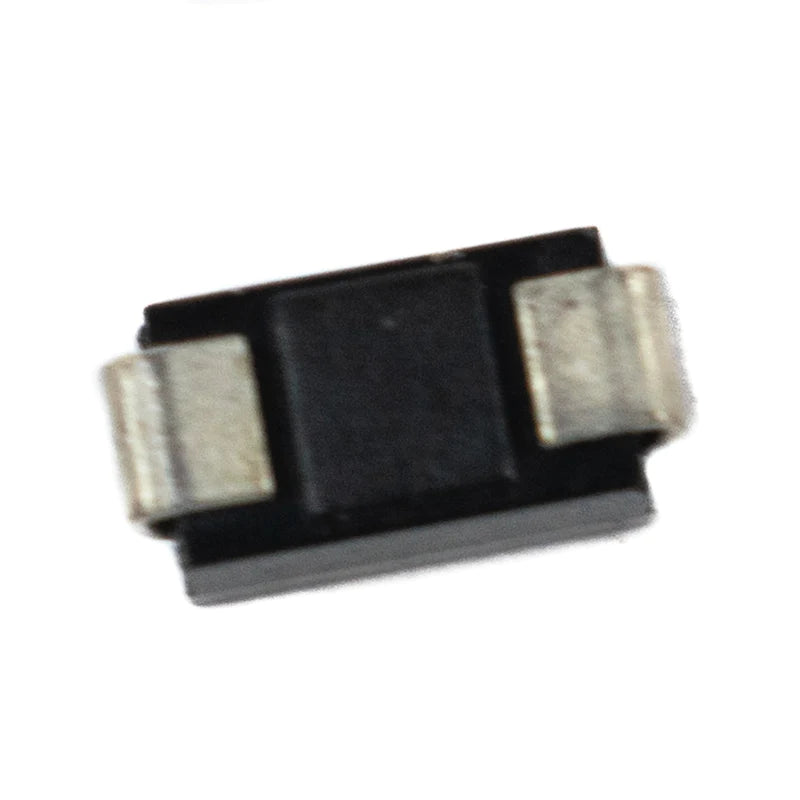

US1M - Fast Recovery Diode 1A SMA DO-214AC (Pack of 2000)

US1M - Fast Recovery Diode 1A SMA DO-214AC (Pack of 2000)

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The US1M is an SMA (DO-214AC) surface mount fast rectifier diode. For maximum efficiency, this device has a glass passivated junction, low profile packaging, and a quick recovery time....
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3449
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The US1M is an SMA (DO-214AC) surface mount fast rectifier diode. For maximum efficiency, this device has a glass passivated junction, low profile packaging, and a quick recovery time.

Features

  • Glass Passivated Die Construction
  • Ultra-Fast Recovery Time for High Efficiency
  • Surge Overload Rating to 30A Peak
  • High Current Capability
  • Ideally Suited for Automated Assembly
SPECIFICATIONS
Model US1M
Package SMA DO-214AC
Mounting Surface Mount
Max. Repetitive Reverse Voltage 1000V
Max. RMS Voltage 700V
Average Rectified Current 1A
Forward Voltage 1.7V
Reverse Current 5µA
Reverse Recovery Time 35ns
Max. Forward surge Current 30A
Operating Junction Temperature -55°C to 150°C
Quantity 2000
