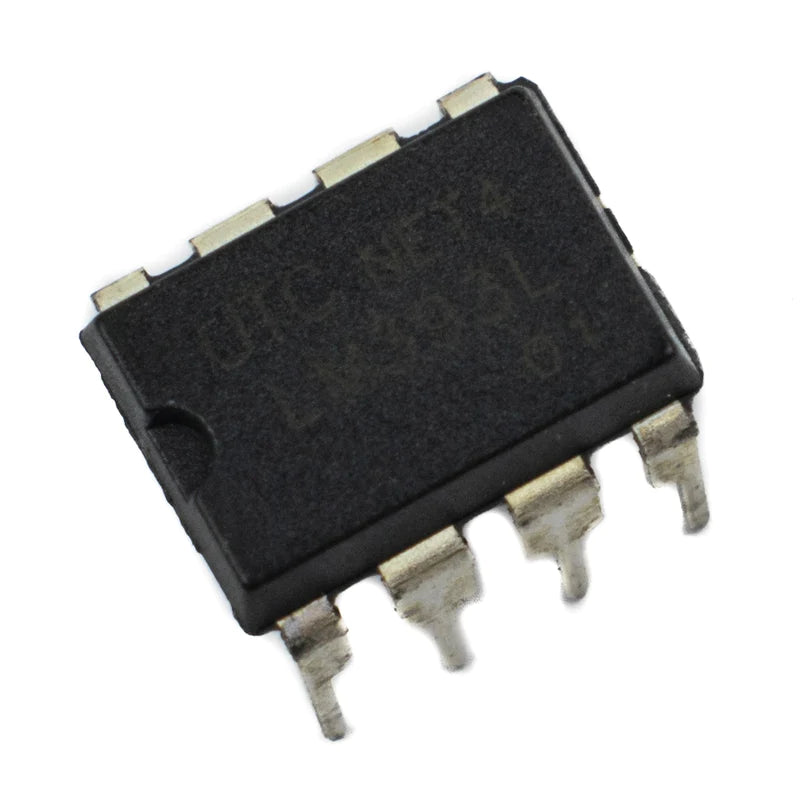

UTC LM393 Low Power Low Offset Voltage Dual Comparator IC

UTC LM393 Low Power Low Offset Voltage Dual Comparator IC

₹ 24.00
₹ 30.00 ₹ 24.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The LM393 consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also...
26 people are viewing this right now

Availability: In stock

SKU: ATC-4067
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Digital Logic
View full product details

Description

The LM393 consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Datasheet

Feature

  • Single or dual supply operation.
  • Wide operating supply range (VCC=2V ~ 36V or ±1 ~ ±18V)
  • Input common-mode voltage includes ground.
  • Low supply current drain ICC=0.8mA (Typical).
  • Low input bias current IBIAS=25nA (Typical).
  • Output compatible with TTL, DTL, and CMOS logic system.
SPECIFICATIONS
Model LM393
Brand Unisonic Technologies
Supply Voltage ±18 or 36V
Package DIP-8
Differential Input Voltage 36V
Input Voltage -0.3V ~ +36V
Response Time 1400ns
Output Saturation Voltage 400mV
Power Dissipation 780mW
