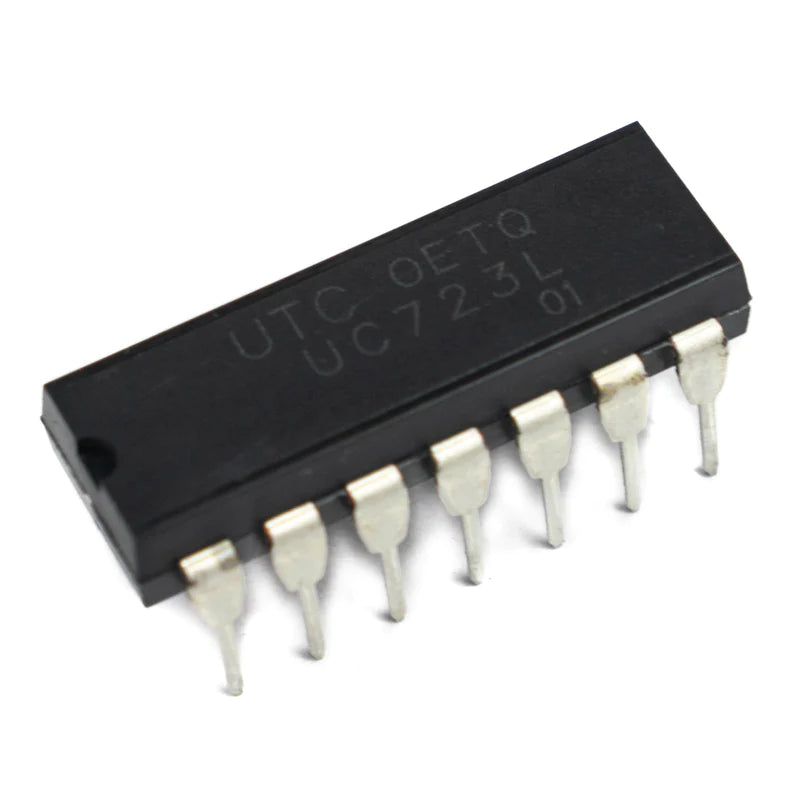

UTC LM723 Voltage Regulator IC

UTC LM723 Voltage Regulator IC

Description The UTC LM723 is a silicon monolithic integrated circuit, designed for service as voltage regulator at output voltages, ranging from 2V to 37V at current up to 150mA. It...
22 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-4239
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Voltage Regulator
View full product details

Description

The UTC LM723 is a silicon monolithic integrated circuit, designed for service as voltage regulator at output voltages, ranging from 2V to 37V at current up to 150mA. It includes a temperature-compensated reference amplifier, an error amplifier, a power series pass transistor, and a current-limiting circuit.

Features:

  • Up to 150mA output current
  • Adjustable output voltage (from 2V to 37V)
  • Positive and negative voltage regulation
  • Regulation in excess of 10A with suitable pass transistors
  • Input and output short-circuit protection
  • Load and line regulation< 0.03%
SPECIFICATIONS
Model LM723
Brand UTC
Regulated Output Voltage 5V
Line Regulation (ΔVIN = 3V) 0.5mV
Load Regulation (ΔIL = 50 mA) 1.5mV
Maximum Pulse Voltage from V + to V − (50 ms) 50V
Maximum Continuous Voltage from V + to V − 40V
Maximum Input-Output Voltage Differential 40V
Maximum Amplifier Input Voltage (Differential) 25mA
Package TO264
Maximum Amplifier Input Voltage (Either Input) 8.5V
