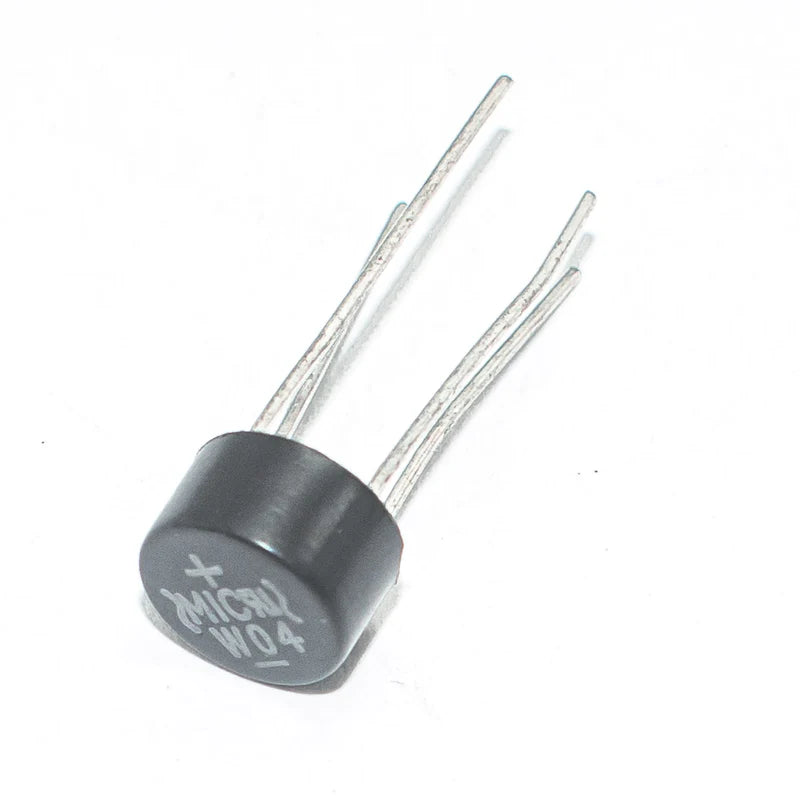

W04 400V 1A Full Wave Bridge Rectifier

W04 400V 1A Full Wave Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier with a voltage range of 50 to 400 volts and a current rating of 1 amp. Features:...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3746
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier with a voltage range of 50 to 400 volts and a current rating of 1 amp.
Features:
  • High reverse voltage to 400V

  • Surge overload ratings to 50 amperes peak



  • Good for printed circuit board assembly

 SPECIFICATIONS:
Max. Recurrent Peak Reverse Voltage 400V
Maximum RMS Voltage 280V
Max. DC Blocking Voltage 400V
Max. Instantaneous Forward Voltage 1V
Max. Average Rectified Current 1.5a
Peak Forward Surge Current 40A
Max. DC Reverse Current 10µA at 25°C
Operating Temperature -55°C to 125°C
