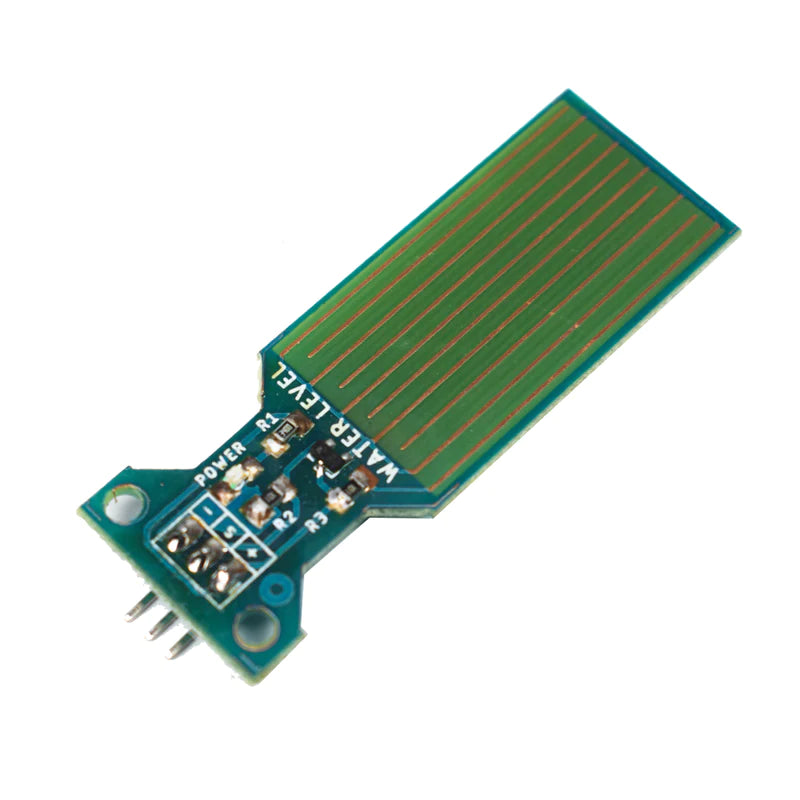

Water Level Sensor Module

Water Level Sensor Module

Description This is the Water Level Depth Detection Sensor Module. It is easy to use and cost-effective with a high-level/drop recognition sensor by having a series of parallel wires exposed...
27 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2759
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Water Sensor
View full product details

Description

This is the Water Level Depth Detection Sensor Module. It is easy to use and cost-effective with a high-level/drop recognition sensor by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level.

SPECIFICATION
Type Water Level Sensor
Operating Voltage DC 3-5V
Operating Current  <20mA
Sensor Type Analog
No. of Pin 03
Detection Area 36 mm x 18 mm
Dimensions 60 mm x 21 mm
Operating temperature 10-30℃
Make Made in India
