Description

This Ultrasonic Distance Sensor is an industrial-grade sensor to measure distance. Interfacing with it is the same as another cheap ultrasonic sensor, but it offers better performance and is compatible with harsher environments and is waterproof too! It can be easily interfaced with Arduino and Sample codes and projects are available.

There are many ultrasonic distance sensors in the market, but sometimes, this kind of sensor needs to work in vulnerable conditions. This Waterproof Ultrasonic Obstacle Sensor meets this requirement. It has a good performance and almost the same usage of an HC-SR04 module

It is very easy to use, a control port with a 10US above high level can wait for high-level output at the receiving port. An output can drive the timer when this port is low can read the timer value, this time for the location of the time can be distance measurement. Constantly cycle tests that can achieve the measurement of the value of your mobile.

Wiring of the Waterproof Ultrasonic Sensor

• +5V(positive)
• Trig(control)
• Echo(receive)
• GND(negative)

Features

• Designed to work in wet or harsh environments.

• Built for reliable and accurate distance measurement.

• Can measure distances between 250mm and 4500mm.

• Simple interface, compatible with Arduino projects.

• Suitable for various applications like water level measurement, obstacle avoidance, and traffic control.

Applications

• Water level measuring system
• Horizontal distance
• Obstacle avoidance, automatic control
• Traffic control
• Security, industrial control
• Artificial intelligence, and research.

Package Includes

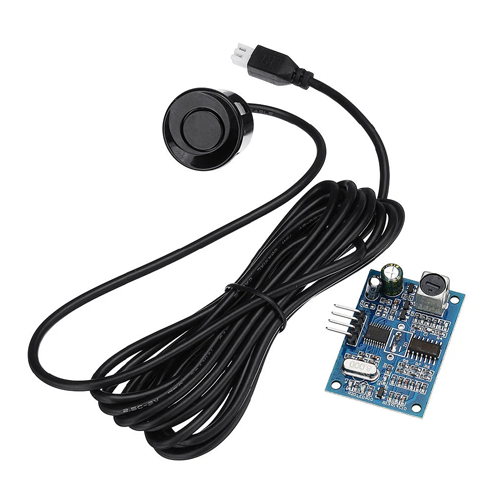

• 1 x Waterproof Ultrasonic Obstacle Sensor
• 1 x 2.5m Separate Probe

Specifications

• Operating Voltage :- 5 V

• Sonar Sensing Range :- 25-450 cms

• Max. Sensing Range :- 450 cms

• Frequency :- 40KHz

• Dimensions :- 4.1 x 2.8 x 1.25cms

• Weight :- 100 grams

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
