Availability: In stock
Ask For Price
Free shipping and returns available on all orders!
We ship all orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

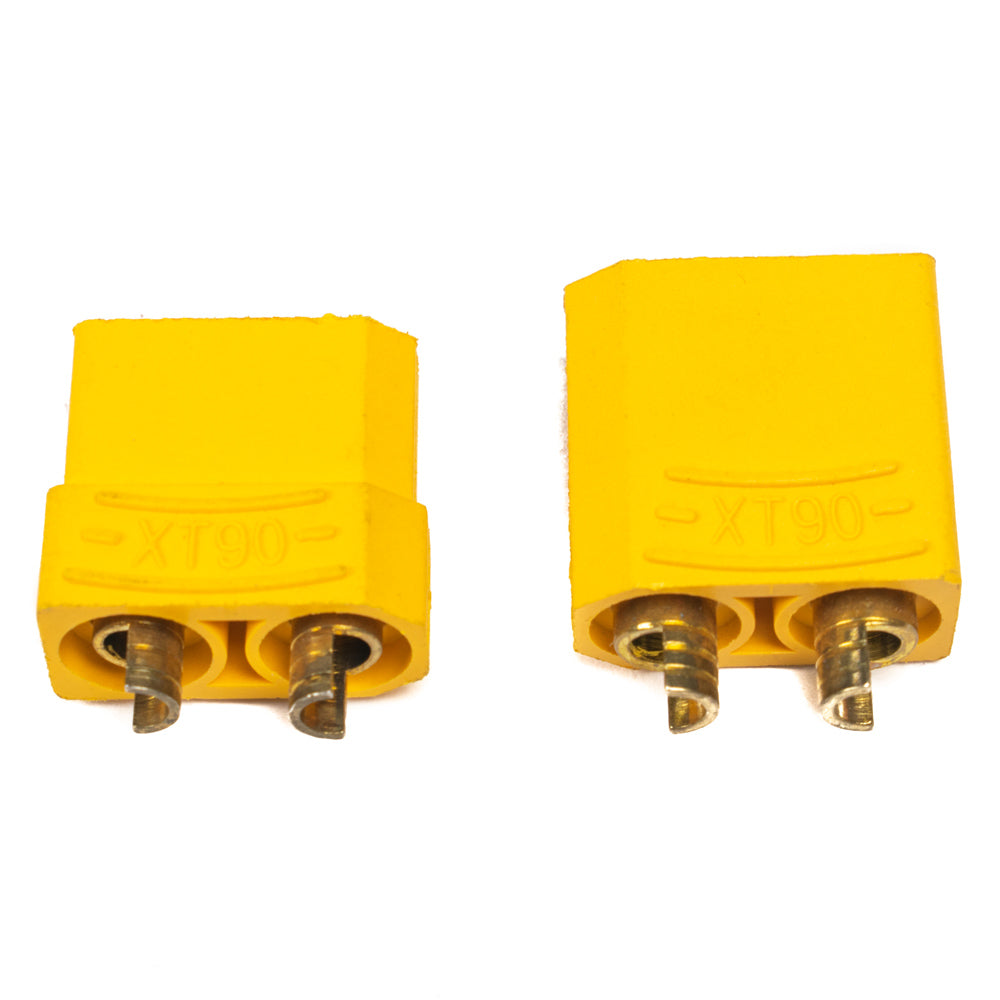

XT-90 connector has a female end for the battery and a male end for the charger. The design of the jacket's rear concave shape can allow the shrink tube to be placed more deeply, protecting junctions from water vapour and making them easier to solder. Precision mould processing, close connection with no gaps, and leakproof. Clear "+" and "-" signs, and larger contact area, 4.5mm banana plug, can handle a continuous current of 90A, 120A high current peak. The new type housing and groove slot design make the connection stronger and eliminate any mistakes. Non-slip insulator that is simple to connect. The tail's 180-degree outward shape allows wire to be soldered easily.
Features
| Rated Operating Voltage | 500V DC |
| Contact Material | Brass |
| Current Handling Capacity | 90A |
| Allowed Wire Gauge | 14 ~ 12 AWG |
| Contact Plating | Gold flash |
| Operating Temperature Range | -20°C to 120°C |
| Flammability Rating | UL94V-0 |
| Gender | Mail-Female Pair |
| No. of Contact Points | 2 |
| Connector Type | XT90 |
| Metal Connector Size | 4.5mm |
| Color | Yellow |
| Dimension | 38.6x21.5x11.2 |
