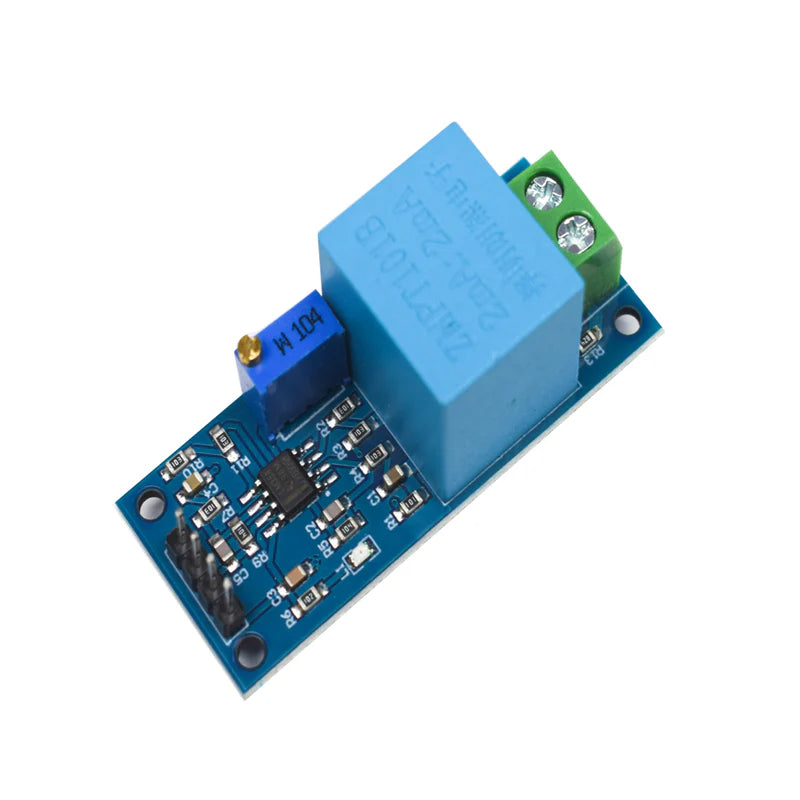

ZMPT101B AC Single Phase Voltage Sensor Module

ZMPT101B AC Single Phase Voltage Sensor Module

Regular price ₹ 139.00
Regular price ₹ 150.00 Sale price ₹ 139.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This is an AC Single Phase Voltage Sensor Module. The ZMPT101B AC Voltage Sensor is ideal for DIY projects requiring accurate AC voltage measurement using a voltage transformer. This...
29 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4667
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

This is an AC Single Phase Voltage Sensor Module. The ZMPT101B AC Voltage Sensor is ideal for DIY projects requiring accurate AC voltage measurement using a voltage transformer. This is an excellent choice for measuring AC voltage using an open-source platform such as Arduino/ESP8266/Raspberry Pi. This module can be measured within 250V AC voltage; the connected analog output can be adjusted.

Pinout

  1. Pin 1 & 2 (AC Source)
  2. Pin 3,4,5,6 (VCC, OUT, GND, GND)

Specifications

 Product  ZMPT101B
 Type AC Single Phase Voltage Sensor Module
 No. of Pins 06
 Measured Voltage Up to 250
 Supply Voltage 5-30V
 Operating temperature
40ºC ~ + 70ºC
 Dimensions 51mm*21mm*20mm
 Make Made in India



*Note: Product Image are shown for illustrative purposes only and may different from the actual product.
