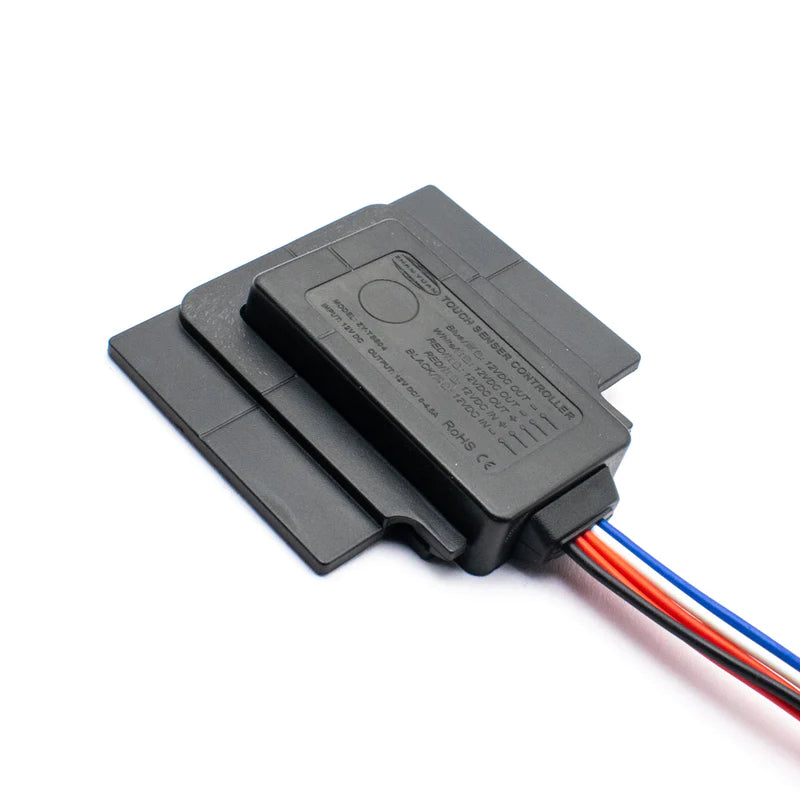

ZY-TSS04 Mirror Touch Switch for ON/OFF and Dimming Control with Two Outputs

ZY-TSS04 Mirror Touch Switch for ON/OFF and Dimming Control with Two Outputs

Description Touch Control Sensor Switch for Mirror Light can be powered by simply supplying a 12VDC. It has a switch control function to light up LED lights from a single...
25 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2467
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Touch Switch
View full product details

Description

Touch Control Sensor Switch for Mirror Light can be powered by simply supplying a 12VDC. It has a switch control function to light up LED lights from a single touch. The product is specially designed for smart light mirrors. It is suitable for the control of two mirror lights, single touch switch controls both the LED’s one after the other, which means on the first touch the LED connected with blue wire will glow. On the second touch, the LED connected with white wire will glow and on the third touch both the LED’s will glow together. The fourth touch switches off both the LED’s. The module has a feature to control the intensity of both the LED strips.

The touch switch has a feature of backlight, according to this as the power gets supplied to the module the touch switch starts glowing blue and whenever the LED is switched on the blue color changes to white.

  • 12VDC IN+ AND 12VDC IN-, gets connected to the input 12VDC supply to power the module.
  • 12VDC OUT-(Blue),12VDC OUT-(White) AND 12VDCOUT+(Red), gets connected to two LED strips. The positive wire(red-colored) will be common for both LED strips and the other two negative wires(blue and white-colored) will get connected with the negative of both the LED strips. The LED’s intensity can be controlled by touching continuously the touch switch, it goes from bright to dim then removing the finger and placing it again, it goes from dim to bright. Both the LED strip’s intensity can be altered, either when the single LED is glowing or while both the LEDs are glowing.

Switches Installation Procedure:

1. On the mercury side of the mirror sand beating Or use the laser to carve out the icon of the switch button.
2. Remove the 3M sticker on the back of the bracket to facilitate the next step of pasting fixing installation.
3. Take the icon of the switch button as the centre, and stick the touch switch to the icon of the button.
4. After installation, touch the switch to power on, and the mirror can see the backlight icon.

SPECIFICATIONS
Operating Voltage 12V DC
Operating Current 0-4.5A
Number of Output Dual Output
Dimming Function  Yes
Model ZY-TSS04
Number of Wires 5
Dimension(LxWxH) 55mm x 35mm x 12mm
Cover Dimension(LxW) 55mm x 63mm
